LDN6 Cylinder Series

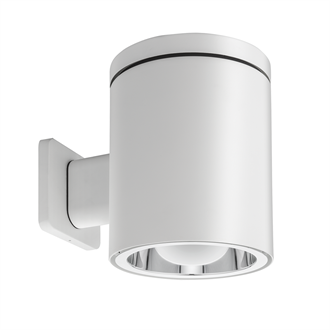

LED 6" Surface, Pendant and Wall Mount Cylinders

By Lithonia Lighting

    Energy Star®Buy America(n)
  • Overview
  • Specifications

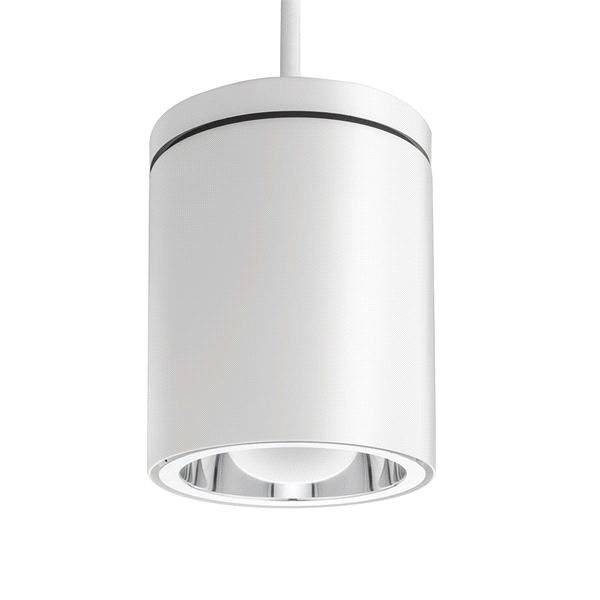

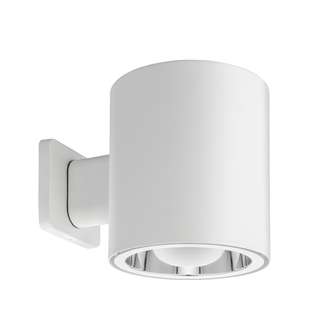

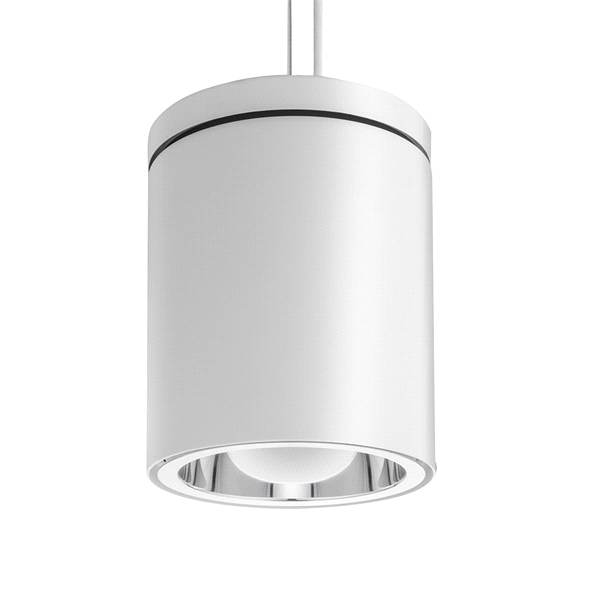

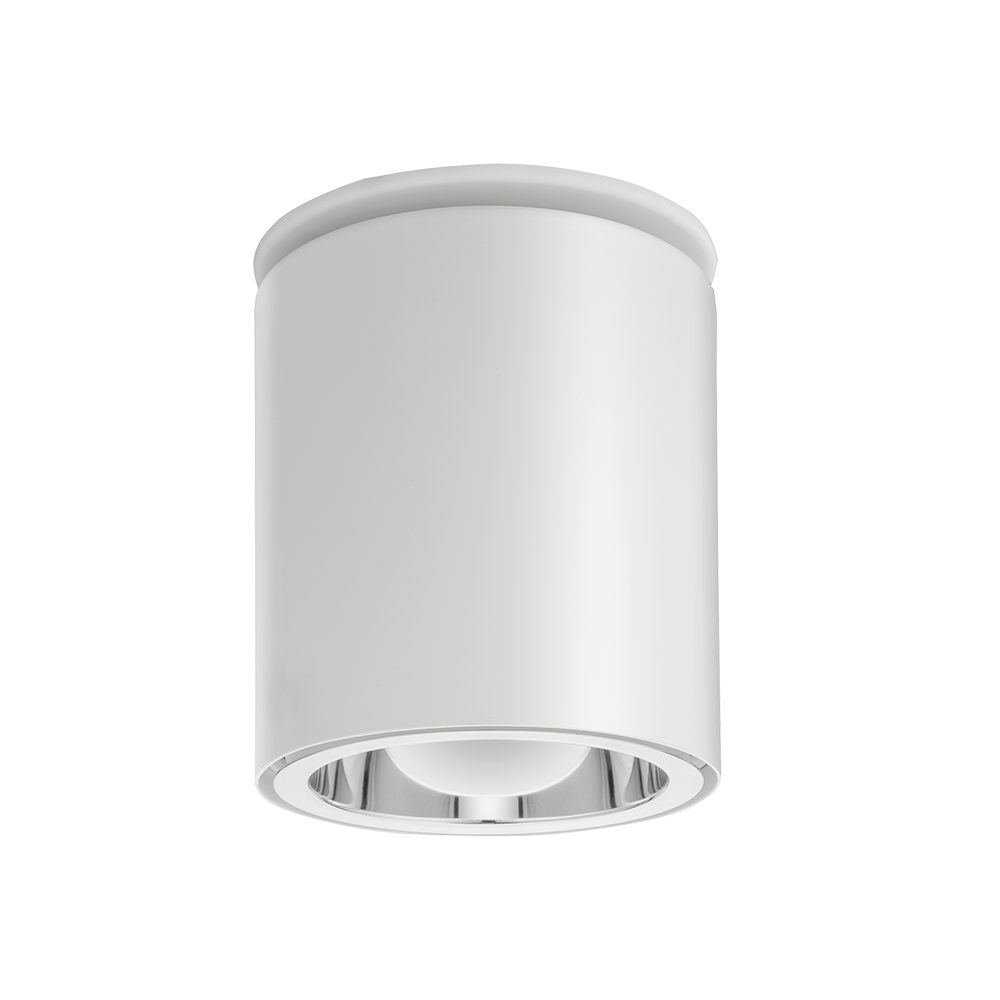

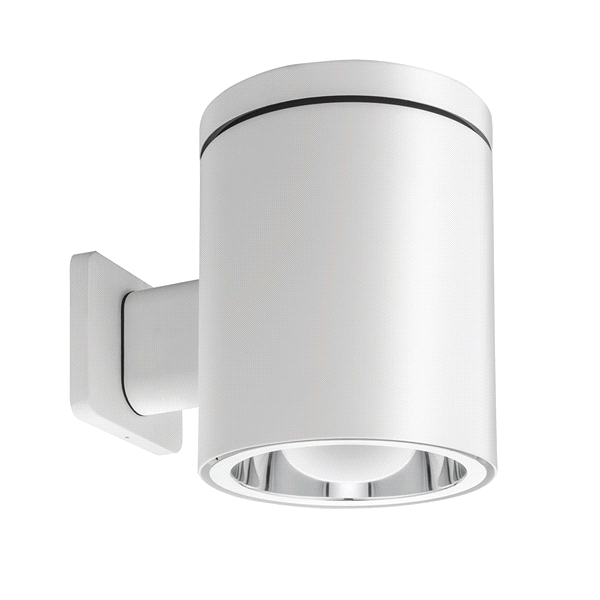

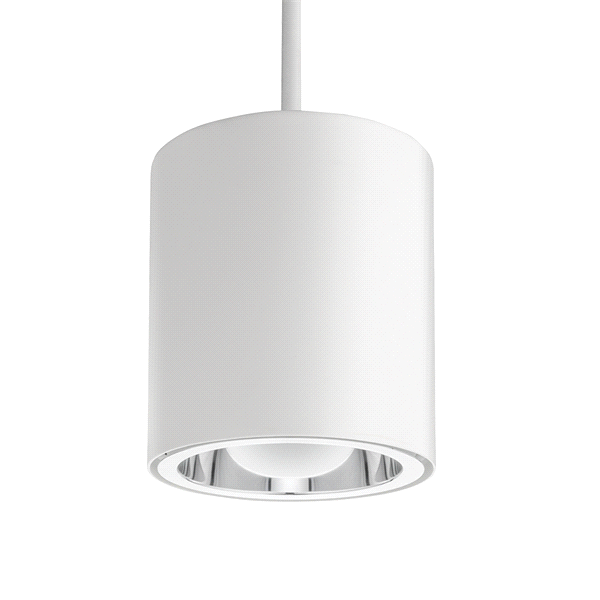

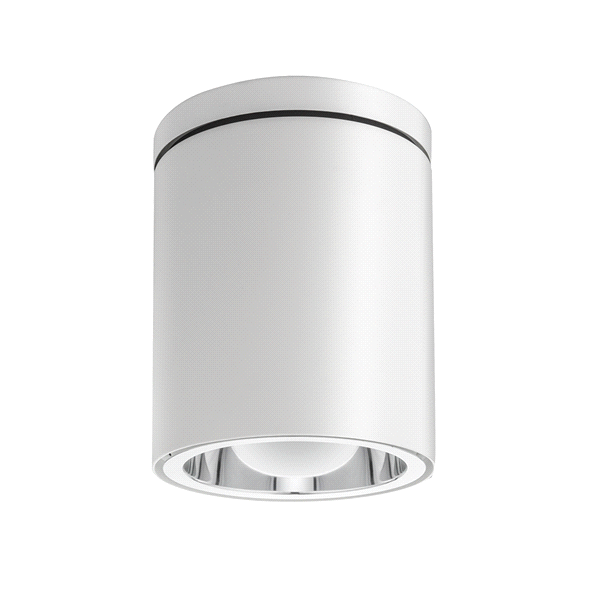

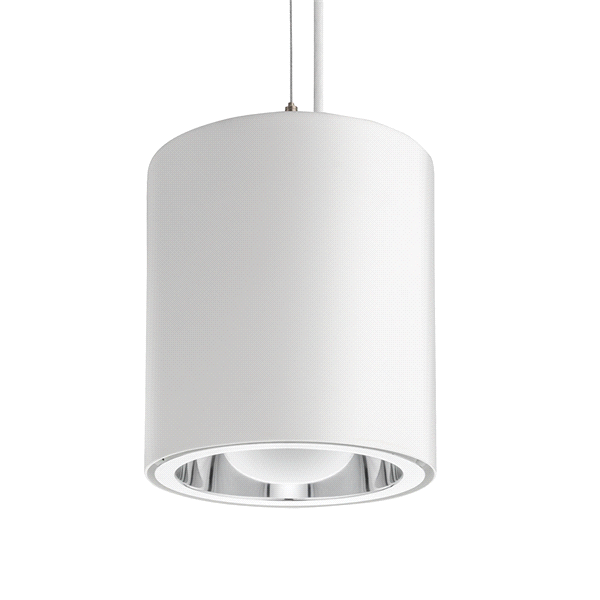

General illumination cylinders in damp and wet location surface, pendant (stem and cable), and wall mount configurations.
Key Features
  • Up to 5000lm delivered
  • 55° cutoff and 75+ LPW
  • 1.0 Spacing/Mounting Height ratio
  • Open wallwash kicker also available
  • eldoLED drivers (10% or 1% min dimming)
  • Available with nLight networking from Acuity Controls
  • Configurations support A+ Certified Solutions
Read More
Read Less
Size 6 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 750 LM, 1000 LM, 1500 LM, 2000 LM, 2500 LM, 3000 LM, 4000 LM, 5000 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80, 90
Product Type Cylinder
Compliance Listing BAA, ENERGY STAR®
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA, cUL
Dimming Protocol 0-10V
Fixture Wattage 56
Voltage Rating 120, 120-277, 277
Trim Style Cone, Open, Single Wallwash
Color Black, Clear, White
Mounting Type Pendant, Surface
Series LDN6CYL

Read More Read Less
