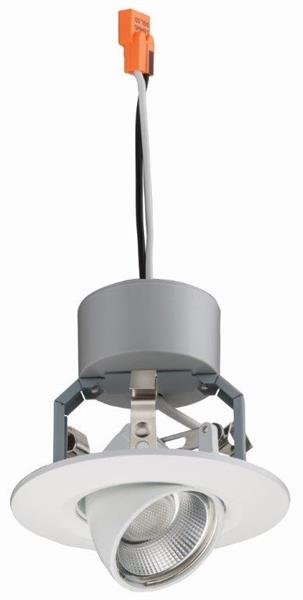

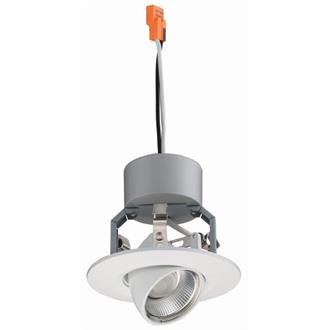

3" LED iGimbal Module

Targeted LED Downlighting with a Twist

By Lithonia Lighting

    CA Title 24/JA8
  • Overview
  • Specifications
The 3" LED iGimbal downlighting module offer a classic gimbal design with integrated LED technology. Replacing your existing 50-watt and 65-watt incandescent gimbals with the LED iGimbals can save you 80% in energy cost and eliminate routine maintenance.
Offering over 50° of vertical tilt and 360° of rotation, the LED iGimbals are ideal for sloped ceilings, grazing textured surfaces, wall washing and highlighting artwork and architectural features. The 3" iGimbal series is available in matte white, matte black, brushed nickel, and oil-rubbed bronze, making it easy to compliment any décor.
The iGimbal modules are easy to install and provide up to 35,000 hours of LED life.
Read More
Read Less
Size 3 IN
Shape Round
Light Source LED - Static
Lumens 500 LM, 560 LM, 590 LM
CCT / LED Color 2700 K, 3000 K, 4000 K
CRI 90
Product Type Retrofit Kit
Compliance Listing CA Title 24, JA8
Environmental Listing Damp Location, IC
Regulatory Listing ETL, UL
Dimming Protocol Triac
Fixture Wattage 9
Voltage Rating 120
Trim Style Adjustable, Gimbal
Color Black, Bronze, Nickel, White
Mounting Type Recessed
Series 3IGMW, 3IGBN, 3IGORB, 3IGMB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 3iGLED iGIMBAL.pdf Retrofit iGimbal 9/24/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet 5IGMB.pdf iGimbal Installation Instructions 9/16/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet LL_2959_iGimbal Sell Sheet.pdf LED iGimbal Sell Sheet LL_2959 9/8/2020 View
