5" LED iGimbal Module

Targeted LED Downlighting with a Twist

By Lithonia Lighting

    Energy Star®CA Title 24/JA8
  • Overview
  • Specifications
The 5" LED iGimbal downlighting module offer a classic gimbal design with integrated LED technology. Replacing your existing 50-watt and 65-watt incandescent gimbals with the LED iGimbals can save you 80% in energy cost and eliminate routine maintenance.

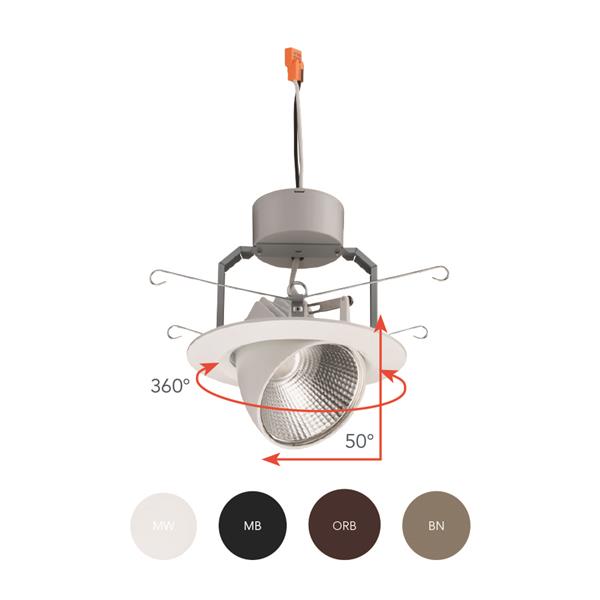

Offering over 50° of vertical tilt and 360° of rotation, the LED iGimbals are ideal for sloped ceilings, grazing textured surfaces, wall washing and highlighting artwork and architectural features. The 5" iGimbal series is available in matte white, matte black, brushed nickel, and oil-rubbed bronze, making it easy to compliment any décor.
The iGimbal modules are easy to install and provide up to 35,000 hours of LED life.
Read More
Read Less
Size 5 IN
Shape Round
Light Source LED - Static
Lumens 720 LM, 750 LM, 770 LM
CCT / LED Color 2700 K, 3000 K, 4000 K
CRI 90
Product Type Retrofit Kit
Compliance Listing ENERGY STAR®, JA8
Regulatory Listing ETL
Dimming Protocol Triac
Fixture Wattage 12
Voltage Rating 120
Trim Style Adjustable, Gimbal
Color Black, Bronze, White
Mounting Type Recessed
Series 5IGMW, 5IGBN, 5IGORB, 5IGMB

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 5iGLED iGIMBAL.pdf LED Retrofit iGimbal 9/24/2021 View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Instruction Sheet 5IGMB.pdf iGimbal Installation Instructions 9/16/2020 View
  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1Enter the Zip Code or Select the State and Utility

    Step 2Ensure that the correct Product Category is selected if there is more than one option

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet LL_2959_iGimbal Sell Sheet.pdf LED iGimbal Sell Sheet LL_2959 9/8/2020 View
