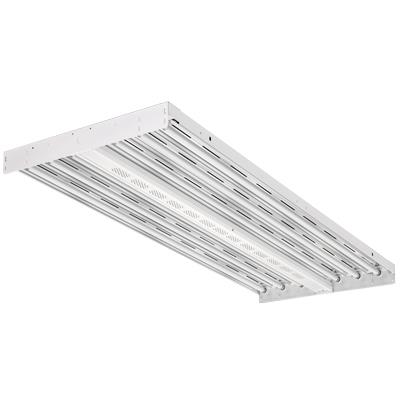

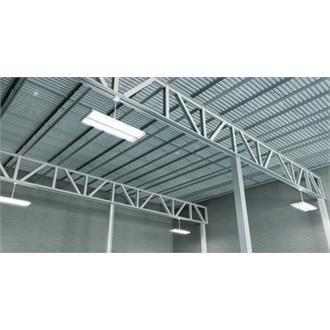

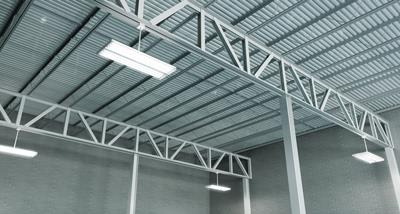

The I-BEAM
Construction
The configurable design of the I-BEAM IBZ allows wireguards, lenses, tandem kits and sensors to be quickly installed in either our factory or in the field. The Integrated Modular Plug (IMP) feature further enhances the flexibility by allowing plug-and-play components such as sensors and photocells.
Optics
The optics are engineered to be both highly efficient and manage the heat generated by the lamps. The thermal vents convent heat rapidly to reduce dirt depreciation by pulling heat and contaminates out of the reflector and away from the lamps.
Electrical
Using the most advanced ballast technology available, the Cool Running Plus™ Technology ballast is integrated into the T5HO IBZ System to provide reliable operation in ambient environments up to 155°F (68°C). This ballast features independent lamp operation, thermal response to regulate the ballast case temperature, and an enhanced two-level switch mode. The Cool Running Plus™ Technology ballast may be paired with optional energy-saving lamps saves an additional 5W per T5HO lamp. Both the Cool Running Plus™ Technology ballast and energy-saving lamps will be warranted for 5 years providing an industry-best system warranty.
Size | 4FT |
Shape | Rectangular |
Light Source | Fluorescent |
Lumens | Not Applicable |
CCT / LED Color | 4100 K |
Product Type | High Bay |
Environmental Listing | Damp Location |
Regulatory Listing | CSA, UL |
Dimming Protocol | Not Applicable |
Fixture Wattage | 32 |
Voltage Rating | 120, 120-277, 208, 240, 277, 347, 347-480, 480 |
Color | White |
Mounting Type | Suspended |
Series | IBZ, TIBZ |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET IBZ T5HO Narrow or wide distribution — using T5HO lamps 5/26/2021 View SPEC SHEET IBZ T8 Narrow or wide distribution, using T8 lamps 4/27/2021 View SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material 7/26/2011 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information 9/24/2018 View Installation Instructions AU4325_Rev 5.7.2012.pdf IBAC120-240 Instruction sheet for air craft cable mounting for high bays 10/13/2016 View Installation Instructions AU7084 - side rail instructions I-BEAM® IBZ Energy-Saving Fluorescent High Bay – AU7084 Side Rail Instructions 7/30/2014 View Installation Instructions AU7126 (4) surface mount kit I-BEAM® IBZ Energy-Saving Fluorescent High Bay – AU7126 Surface Mount 7/30/2014 View Installation Instructions IBAC120 INSTALLATION INSTRUCTION.pdf IBAC120/240 INSTALLATION INSTRUCTION 4/7/2016 View Installation Instructions IBZ DOOR FRAME ASSEMBLY INSTRUCTION Installation instructions on replacing an IBZ door frame assembly 1/28/2015 View Installation Instructions IBZ DOOR HARDWARE INSTALLATION INSTRUCTION IBZ door frame replacement instruction 1/7/2019 View Installation Instructions IBZ SOCKET BRACKET REMOVAL INSTRUCTIONS - table top.pdf IBZ SOCKET BRACKET REMOVAL INSTRUCTIONS 1/7/2019 View Installation Instructions IBZ WIREGUARD INSTALLATION INSTRUCTIONS IBZ Wireguard installation instructions 1/28/2015 View Installation Instructions IBZ_installation_sheet I-BEAM® IBZ Energy-Saving Fluorescent High Bay – Installation Instructions 7/30/2014 View Installation Instructions IBZ_Reflector_Replacement_Instruction_Sheet Reflector installations 1/7/2019 View Installation Instructions IBZ-654-IBAC IBAC mounting position installed on fixture 7/30/2014 View Installation Instructions IBZACVH INSTRUCTION SHEET REV 2 7 2 10 I-BEAM® IBZ Energy-Saving Fluorescent High Bay – ACVH Installation Instructions 1/7/2019 View Installation Instructions IBZPMP AND IBZPMPHB INSTRUCTION SHEET IBZpmp & IBZpmphb installation instructions 1/27/2015 View Installation Instructions IBZTFC INSTALLATION INSTRUCTION I-BEAM® IBZ Energy-Saving Fluorescent High Bay – TFC Installation Instructions 1/27/2015 View Installation Instructions msiimp I-BEAM® IBZ Energy-Saving Fluorescent High Bay – MSIIMP Instructions 7/30/2014 View Material Safety Data Sheet (GE) psds-fluorescent-lamps.pdf GE MSDS Fluorescent lamps (2017) 4/2/2019 View Material Safety Data Sheet Fluorescent-T5-Lamps-LMDS-TL5-09100D.pdf MSDS Philips Fluorescent T5 lamps (Rev 8.28.18 Version number: 1.1) 4/2/2019 View Material Safety Data Sheet Fluorescent-T8-Lamps-LMDS-TL8-13100A.pdf MSDS Philips Fluorescent T8 lamps (Rev 8.28.18 Version number: 1.1) 4/2/2019 View Material Safety Data Sheet Nicd-Sds.pdf MSDS for all Power Sentry NiCad brand battery packs 5/10/2018 View -
Utility Rebate Search
-
Replacement Parts
Document Type Document Title Description Updated View Replacement Part Spec Sheet dlibz14 A12125 Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet DLIBZ14 A12125WG Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet dlibz14 ACL Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet DLIBZ14 ACLWG Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet DLIBZ14 NLWG Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet dlibz14 PCL125 Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet DLIBZ14 PCL125WG Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet dlibz19 A12125 Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet DLIBZ19 A12125WG Door and Lens assembly spec drawing 1/29/2015 View Replacement Part Spec Sheet dlibz19 ACL Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ19 ACLWG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ19 NLWG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ19 PCL125 Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ19 PCL125WG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ24 A12125 Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ24 A12125WG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ24 ACL Door and Lens assembly spec drawing 1/28/2015 View Replacement Part Spec Sheet DLIBZ24 ACLWG Door and Lens assembly spec drawing 1/28/2015 View Replacement Part Spec Sheet DLIBZ24 NLWG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet DLIBZ24 PCL125WG Door and Lens assembly spec drawing 1/7/2019 View Replacement Part Spec Sheet hbbs36 Chain hanging kit spec drawing 1/7/2019 View Replacement Part Spec Sheet IBAC120-240 SPECIFICATION SHEET IBAC Specification Sheet 1/27/2015 View Replacement Part Spec Sheet IBHMP SPECIFICATION DRAWING IBHMP I-BEAM® LED Solid Top BayLight - Drawing 1/27/2015 View Replacement Part Spec Sheet IBZ ACCESS PLATE Access plate spec drawing 1/7/2019 View Replacement Part Spec Sheet IBZ DOOR HARDWARE IBZ door frame hard ware repair kit 1/7/2019 View Replacement Part Spec Sheet IBZ WG HARDWARE IBZ wireguard hardware spec drawing 1/7/2019 View Replacement Part Spec Sheet ibz_pmp_kit IBZ PMP mounting kit drawing 1/7/2019 View Replacement Part Spec Sheet ibz_pmpHP_kit IBZ PMPHB mounting kit drawing 1/27/2015 View Replacement Part Spec Sheet ibzsmb IBZ Surface Mounting Bracket spec sheet 1/27/2015 View Replacement Part Spec Sheet RK1 MSI Replacement kit for MSI sensor 1/27/2015 View Replacement Part Spec Sheet RK1 MSI360 Replacement kit for MSI360 sensor 1/27/2015 View Replacement Part Spec Sheet U02201 - IBZ SFR SENSOR COVER IBZ sensor knock out cover 1/7/2019 View Replacement Part Spec Sheet WGIBZ14 AND HARDWARE IBZ wire guard replacement kit spec drawing 1/28/2015 View Replacement Part Spec Sheet WGIBZ19 AND HARDWARE IBZ wire guard replacement kit spec drawing 1/28/2015 View Replacement Part Spec Sheet WGIBZ24 AND HARDWARE IBZ wireguard replacement kit spec sheet 1/7/2019 View -
Confidential Documents
-
Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )
Document Type Document Title Description Updated View FAQ IBZ FAQs IBZ FAQs 5/5/2014 View -
