M

Lensed, Metal Sides

By Lithonia Lighting

  • Overview
  • Specifications

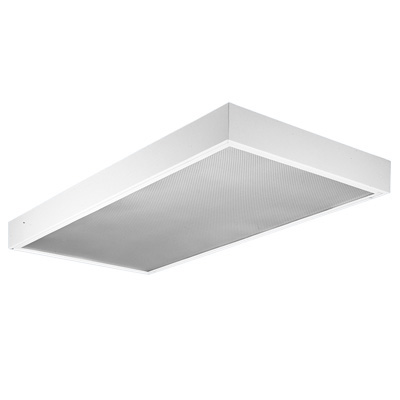

Surface or stem-mounted lensed fixture for general illumination in commercial offices and indoor retail applications.


Construction

Die-formed, cold-rolled steel housing finished with baked white enamel.

Standard door is fully gasketed flush steel with sturdy tee hinges and opposing, rotary-action cam latches.

Spring-loaded latches optional.

Aluminum doors available, flush or regressed with choice of finish.

For surface or stem mounting, unit or row installation.

For unit mounting on stems: Minimum of two mounting stems required on 1'x4' models. Four stems required on 2'x4' models and 4'x4' models.

For row mounting on stems: Use half the number of stems required for unit mounting except on last fixture in row. Example: on 2'x4' two-lamp and four-lamp fixtures, use two stems per fixture plus two per row.

Read More
Read Less
Size 1x4, 2x4, 4x4
Shape Rectangular
Light Source Fluorescent
CCT / LED Color 3000 K, 3500 K, 4100 K
CRI 80
Product Type Troffer
Regulatory Listing CSA, NOM, UL
Fixture Wattage 28, 32, 54
Voltage Rating 120, 120-277, 277, 347
Color Black, Silver, White
Mounting Type Surface
Series 2M, 4M, M

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 1'x4', T8 or T5 straight lamps 1'x4', T8 or T5 straight lamps View
    SPEC SHEET 4'x4', T8 straight lamps 4'x4', T8 straight lamps View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
    SPEC SHEET 2'x2', T8 or T5 straight lamps (Discontinued) 2'x2', T8 or T5 straight lamps View
    SPEC SHEET 2'x4', T8 or T5 straight lamps (Discontinued) 2'x4', T8 or T5 straight lamps View
