LIV3

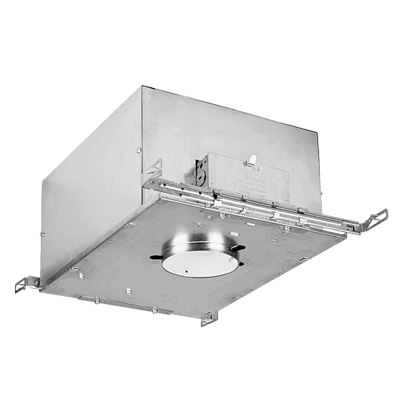

4" IC Low Voltage New Construction Housing Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

This product webpage has been discontinued, please contact your sales local representative.


Recessed housing rated IC for new construction applications. Approved for direct burial in insulation and through-branch circuit wiring. Approved for most wiring and ceiling types.


Construction

Air-tight standard. Meets current energy codes.

Pre-painted steel inner housing and aluminum outer housing mounted to a rugged galvanized steel pan.

Captive bar hangers span 24" and feature built-in nailers and T-bar clips.

Suitable for ceilings up to 1-1/2" thick in new construction only.

Precision-wound step-down transformer with class H insulation. For dimming control, use only dimmers specifically designed for use with magnetic (core and coil) transformers.

Two-pin porcelain socket attaches to lamp. Lamp clips to trim to ensure proper and consistent position.

Trims: 30° vertical tilt standard (except 3VS1 pinhole trim).

Read More
Read Less
Size 4 IN
Shape Round
Light Source Halogen
Product Type Housing
Regulatory Listing cUL, UL
Dimming Protocol 0-10V
Voltage Rating 120
Mounting Type Recessed
Series LIV3

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 4" IC Low Voltage New Construction Housing (Discontinued) 4" IC Low Voltage New Construction Housing View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions LIV3 Installation Instruction Sheet (Discontinued) LIV3 Installation Instruction Sheet View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet 3V Series Vertical Reflectors 3V Series Vertical Reflectors View
    Replacement Part Spec Sheet LIV3 Replacement Parts (Discontinued) LIV3 Replacement Part Spec Sheet View
