L3R
- Overview
- Specifications
Recessed incandescent housings for 2x8 and 2x6 remodel applications. Approved for direct burial in insulation and all ceiling and wiring types.
Construction

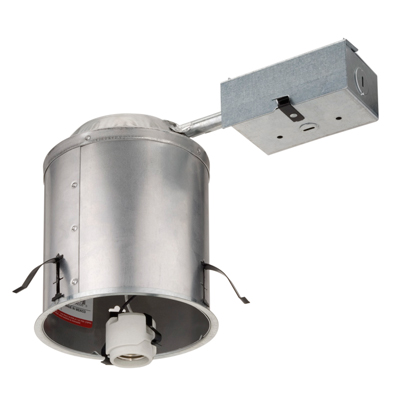

L3R: Air-tight aluminum housing with heavy-gauge galvanized steel raceway arm. Remodel clips for installation in existing plaster, sheet rock or mechanical ceilings. Galvanized steel junction box with three built-in ROMEX® clamps and ground wire. Not suitable for pulling wires. Rated for 90°C. Socket clips to trim to ensure proper and consistent lamp position.
| Size | 4 IN |
| Shape | Round |
| Light Source | Incandescent, LED - Static |
| Product Type | Downlight |
| Regulatory Listing | CSA, cUL, UL |
| Fixture Wattage | Not Applicable |
| Voltage Rating | 120 |
| Mounting Type | Recessed |
| Series | L3R, L3RLED |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET 4" Incandescent Remodel Housing 4" Incandescent Remodel Housing 9/21/2016 View SPEC SHEET 4BP AND 4OP LED.pdf Spec Sheet for 4BP-4OP LED 2/10/2016 View SPEC SHEET 4-INCH HSG.pdf 4 INCH HOUSINGS SPEC SHEET 2/10/2016 View SPEC SHEET L3RLED-T24.pdf L3RLED-T24 Spec Sheet 2/10/2016 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
BIM Models (Revit)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions L7XR Installation Instruction Sheet Installation Instruction Sheet for L7XR, L7XFR, L7XPR, L5R, L3R, LV3R 11/7/2012 View -
Utility Rebate Search
-
Replacement Parts
Document Type Document Title Description Updated View Replacement Part Spec Sheet 3 Series Vertical Reflectors 3 Series Vertical Reflectors Replacement Parts 9/18/2014 View Replacement Part Spec Sheet L3 and L3R Replacement Parts.xls L3 and L3R Replacement Parts Replacement Part Spec Sheet 3/8/2018 View -
