LV3
- Overview
- Specifications
Recessed incandescent housings for 2x6 new construction. Approved for all ceiling and wiring types.
Construction

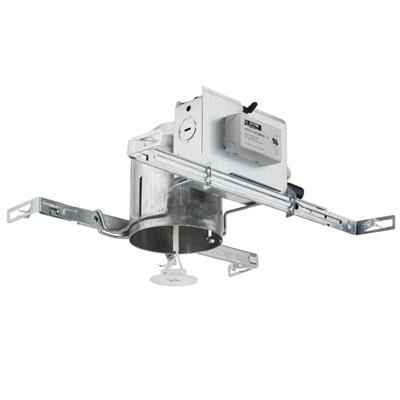

LV3: Air-tight, galvanized steel pan with aluminum can and junction box with four built-in ROMEX® clamps and ground wire. Rated for 90°C. Factory-installed captive bar hangers that span up to 24 o.c. and feature stepped shank nail with integral T-bar locks. Two locking screws hold fixture position. Suitable for ceilings up to 1-1/2" thick.
Trims: 30° vertical tilt standard (except 3VS1 pinhole trim).
Electrical
Two-pin porcelain socket with heat shield.
Thermal protection provided against improper insulation usage. Electronic step-down transformer is standard for 120V or 277V. The minimum starting temperature is 0°F, -18°C with short-circuit protection and meets ANSI/IEEE C62.41 Cat. A transient protection.
| Size | 4 IN |
| Shape | Round |
| Light Source | Halogen |
| Product Type | Housing |
| Environmental Listing | Damp Location, IC, Non-IC |
| Regulatory Listing | cUL, UL |
| Voltage Rating | 120, 277, 347, Not Applicable |
| Trim Style | Adjustable, Cone, Eyeball, Eyelid Wallwash, Open |
| Color | Silver, White |
| Mounting Type | Recessed |
| Series | LV3 |
