LP3V

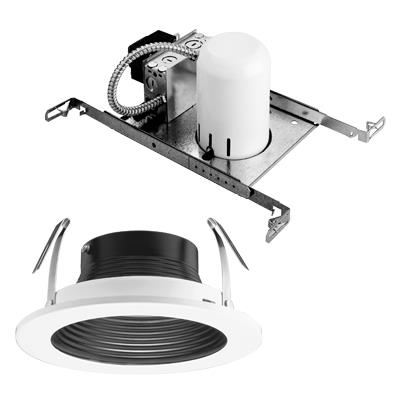

4" Low Voltage New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

New construction applications requiring high-performance vertical reflectors using low-voltage lamps.


Construction

Mechanical: Rugged, galvanized steel frame-in with one-piece painted steel can. Retaining clips secure optical system. Galvanized bar hangers span up to 24" o.c. and feature built-in nailers and T-bar clips. Galvanized steel junction box with removable access door, four ROMEX® knockouts, two 3/4" and four 1/2" nominal conduit knockouts with pryout slots. Maximum ceiling thickness 2".

Trims: 30° vertical tilt standard (except 3VS1 pinhole trim).

Electrical

Precision-wound step-down transformer with Class H insulation. For dimming control, use dimmers specifically designed for use with electromagnetic transformers. Two-pin porcelain socket with heat shield. Rated 90°C supply wire. Ground wire provided. Thermally protected against improper contact with insulation and approved for through-branch circuit wiring.

Read More
Read Less
Size 4 IN
Shape Round
Light Source Incandescent
Product Type Housing
Environmental Listing Damp Location, IC, Non-IC
Regulatory Listing cUL, UL
Voltage Rating 120, 277, Not Applicable
Trim Style Adjustable, Cone, Eyeball, Eyelid Wallwash, Open
Color Silver, White
Mounting Type Recessed
Series LP3V

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 4" Low Voltage New Construction Housing 4" Low Voltage New Construction Housing View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions 4” Low Voltage Non-IC Housing Installation Instructions 4~8221; Low Voltage Non-IC Housing Installation Instructions View
  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet 3V Series Vertical Reflectors 3V Series Vertical Reflectors View
    Replacement Part Spec Sheet LP3V Replacement Parts LP3V Replacement Parts View
