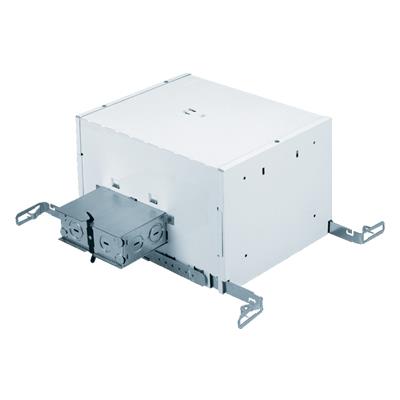

Product Image
4910_large

LI6F

6" IC Compact Fluorescent New Construction Housing

By Lithonia Lighting

  • Overview
  • Specifications

Recessed incandescent housings for 2x8 new construction. Approved for direct burial in insulation and all ceiling and wiring types.


Construction

Pre-painted steel housing.

Galvanized steel junction box with four built-in ROMEX® clamps; two 1/2" and four 3/4" knockouts with slots for pryout. Rated for through- branch wiring.

Trim retention: Housing ships with retention clips which secure reflector upon installation.

Galvanized bar hangers span up to 24" o.c. and feature built-in nailer and T-bar clips.

Socket attaches to reflector to ensure proper and consistent lamp position.

Electrical

Electronic multi-volt ballast, 120V through 277V with end of life protection. Maximum six (three in, three out) #12 AWG conductor. Rated for 90°C supply wire. Ground wire provided. Class P thermally protected ballast protects against improper contact with insulation and approved for through-branch circuit wiring. Poke-home connector standard.

Socket base: 13W four-pin DTT (G24Q-1), TRT (GX24Q-1); 18W four-pin DTT (G24Q-2), TRT (GX24Q-2); 26W four-pin TRT (GX24Q-3).

Read More
Read Less
Size 6 IN
Shape Round
Light Source Compact Fluorescent
CCT / LED Color 3500 K, 4100 K
Product Type Housing
Environmental Listing ASTM Airtight
Regulatory Listing cUL, UL
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 277
Mounting Type Recessed
Series LI6F
