TFR

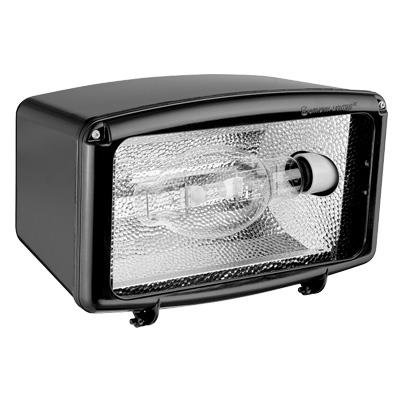

Contour® Medium Horizontal Floodlight HID Outdoor

By Lithonia Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications

For recreation areas, parking lots, building facades and car lots.


Construction

Housing: Compact, soft corner, die-cast aluminum housing and front cover. Front bezel is removable via position-oriented hinge-cam design and is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant clear, tempered glass.

Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.

Optics

Die-formed, anodized aluminum reflectors provide rectangular, uniform distributions. Three available beam distributions for maximum flexibility in area lighting applications.

Electrical

Components mounted to cast-aluminum housing, promoting maximum heat dissipation. Ballast: High reactance, high power factor for 150W. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.

Socket: Porcelain (medium base: 150M; mogul base: all others), horizontally oriented with copper alloy, nickel plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.

Installation

Corrosion-resistant, heavy-duty, painted steel mounting yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.

Read More
Read Less
Shape Rectangular
Light Source HID - High Pressure Sodium, HID - Metal Halide
Lumens 14,000 LM, 27,500 LM, 28,000 LM, 45,000 LM
CCT / LED Color 2100 K, 4000 K
CRI 21, 22, 65
Product Type Floodlight
Compliance Listing BAA
Regulatory Listing NOM
Fixture Wattage 150, 250, 400
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow
Mounting Type Not Applicable, Tenon Slipfitter
Series TFR

Read More Read Less
