TFL

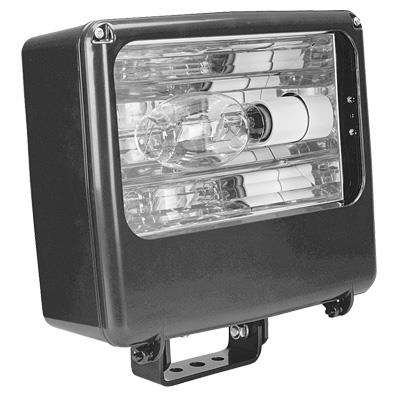

Contour® Medium Floodlight HID Outdoor

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications

For recreation areas, parking lots, building facades and car lots.


Construction

Housing: Compact, soft-corner, die-cast aluminum housing and front cover. Front bezel is fully sealed with one-piece, bonded silicone gasket. Lens is thermal- and shock-resistant, clear, tempered glass.

Finish: Dark bronze polyester powder finish standard. Additional architectural colors available; see www.lithonia.com/archcolors.

Optics

TA2: vertical lamp with one-piece, hydro-formed, anodized aluminum reflector. Two-position adjustable socket. RA2: Horizontal lamp with anodized specular aluminum reflector. Both have sealed optic chamber to inhibit entrance of outside contaminants.

Electrical

Components mounted to cast-aluminum housing for maximum heat-dissipation. Ballast: All ballasts are 100% factory tested. High reactance, high power factor for 150W and below. Constant wattage autotransformer 175W and above. MH: 150W and below are standard with pulse-start ignitor technology. Super CWA Pulse Start ballasts, 88% efficient and EISA legislation compliant, are required for 151-400W (must order SCWA option) for U.S. shipments only. CSA, NOM or INTL required for probe start shipments outside the U.S.

Socket: Porcelain, vertically or horizontally oriented mogul-base socket with copper alloy, nickel-plated screw shell and center contact. UL Listed 1500W, 600V, 4KV pulse rated.

Installation

Corrosion-resistant, heavy-duty, painted steel yoke. External screws treated for corrosion resistance. Above-horizontal aiming standard.

Read More
Read Less
Shape Rectangular
Light Source HID - High Pressure Sodium, HID - Metal Halide
Lumens 27,500 LM, 28,000 LM, 45,000 LM
CCT / LED Color 2100 K, 4000 K
CRI 21, 22, 65
Product Type Floodlight
Compliance Listing BAA
Regulatory Listing NOM
Fixture Wattage 250, 400
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Almond, Beige, Black, Blue, Bronze, Gray, Green, Red, Silver, White, Yellow
Mounting Type Not Applicable, Tenon Slipfitter
Series TFL

Read More Read Less
