KAD

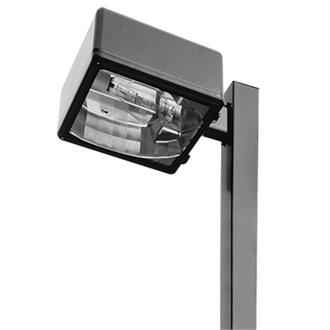

Contour® Soft Square

By Lithonia Lighting

    DLC Standard / Premium  Buy America(n)
  • Overview
  • Specifications

Ideal for car lots, street lighting or parking areas.


Construction

Rugged, die-cast, soft corner aluminum housing with 0.12" nominal wall thickness. Die-cast doorframe has impact-resistant, tempered, glass lens that is fully gasketed with one piece tubular silicone.

Finish: Standard finish is dark bronze (DDB)polyester powder finish, with other architectural colors available.

Optics

Anodized, aluminum reflectors: IES full cutoff distributions R2(asymmetric), R3 (asymmetric), R4 (forward throw), and R5S (square) are interchangeable. High-performance anodized, segmented aluminum reflectors: IES full cutoff distributions SR2 (asymmetric), SR3 (asymmetric), and SR4SC (forward throw, sharp cutoff). Segmented reflectors attach with tool-less fasteners and are rotatable and interchangeable.

Nighttime Friendly™ - Square die-cast housing, flat lens, 400W max. House side shield available in R2, R3, R4, SR2 and SR3.

Electrical

Ballast: high reactance, high power factor for 70 - 150W. Constant wattage autotransformer for 175 - 400W. Metal halide 150W and below are standard with pulse-start ignitor technology; super CWA pulse-start ballast required for 200W, 320W and 350W (SCWA option). Ballast is 100% factory-tested.

Socket: porcelain, horizontally oriented medium base socket for 70 - 150W and mogul base socket for 175W and above, with copper alloy, nickel-plated screw shell center contact. UL listed 1500W, 600V.

Installation

Mounting: Extruded 4" aluminum arm for square pole mounting, shipped in fixture carton as standard. Optional mountings available.

Read More
Read Less
Light Source HID - Ceramic Metal Halide, HID - High Pressure Sodium, HID - Metal Halide
Lumens 14,000 LM, 22,500 LM, 27,500 LM, 28,000 LM, 45,000 LM
CCT / LED Color 2100 K, 4000 K
CRI 21, 22, 65
Product Type Area Light
Compliance Listing BAA, DLC Standard
Regulatory Listing UL
Fixture Wattage 150, 250, 400
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480, MVOLT
Color Beige, Black, Blue, Bronze, Brown, Gray, Green, Red, Silver, White, Yellow
Mounting Type Pole Mount
Series KAD

Read More Read Less
