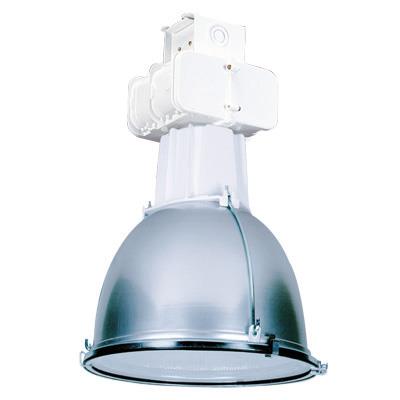

TPGE-A

Premium Enclosed Shrouded Glass Optical Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

For high mounting heights that require high efficiencies, horizontal illumination and premium contrast control. Optimum performance for high ambient temperatures and harsh environments. Ideal for heavy manufacturing areas, warehouses, retail aisles and gymnasiums.


Construction

Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing.

Optics

High-efficiency, high-performance, heat-resistant borosilicate glass reflector with aluminum shroud to protect glass prisms from oily dirt accumulation, emphasizing downward efficiency.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.

Socket: Glazed porcelain, vertically oriented, mogul base socket with copper alloy, nickel-plated screw shell and center contact.

Installation

Cast-aluminum pendant splice box threaded for 3/4" conduit (standard). Other mounting options available.

Read More
Read Less
Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
Product Type High Bay
Environmental Listing Damp Location
Regulatory Listing CSA, NOM, UL
Fixture Wattage 1000, 150, 175, 200, 250, 320, 350, 400, 750
Voltage Rating 120, 208, 240, 277, 347, 480
Color White
Mounting Type Not Applicable
Series TPGE
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 16" Premium Shrouded, 150-400W HPS, 175-450W MH 16" Premium Shrouded, 150-400W HPS, 175-450W MH 5/2/2019 View
    SPEC SHEET 21" Premium Shrouded, 400-1000W HPS, 400-1000W MH 21" Premium Shrouded, 400-1000W HPS, 400-1000W MH View
  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet HC3P L5-15P.pdf HC3P L5-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L5-20P.pdf HC3P L5-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L6-15P.pdf HC3P L6-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L6-20P.pdf HC3P L6-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L7-15P.pdf HC3P L7-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L7-20P.pdf HC3P L7-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L8-20P (1).pdf HC3P L8-20P Specification Drawing View
    Replacement Part Spec Sheet HID Replacement Parts.pdf HID Replacement Parts View
    Replacement Part Spec Sheet LC3P LXXX L5-15P (1).pdf LC3P L5-15P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L5-20P (1).pdf LC3P L5-20P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L6-15P (1).pdf LC3P L6-15P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L6-20P (1).pdf LC3P L6-20P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L7-15P (1).pdf LC3P L7-15P Specification Sheet View
    Replacement Part Spec Sheet LC3P LXXX L8-20P (1).pdf LC3P L8-20P Specification Drawing View
    Replacement Part Spec Sheet LCPP.pdf LCPP Specification Drawing View
    Replacement Part Spec Sheet PPH.pdf PPH Specification Drawing View
    Replacement Part Spec Sheet PPHHKR - TPHKR.pdf PPHHKR - TPHKR Specification Drawing View
    Replacement Part Spec Sheet RK1 SKTMED1.pdf HID Medium Based Socket repair kit - SKTMED1 View
    Replacement Part Spec Sheet SCK SPECIFICATION SHEET.pdf SCK__ Specification Drawing View
