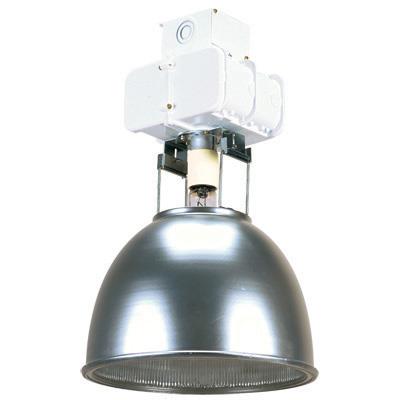

For high mounting heights that require high efficiencies, horizontal and vertical illumination, and premium contrast control. Optimum performance for high ambient temperatures and dirty environments. Ideal for heavy manufacturing areas, warehouses and retail aisles.
Construction
Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing for cooler operation.
Optics
Glass reflector with aluminum shroud to protect glass prisms from oily dirt accumulation, emphasizing downward efficiency.
Electrical
Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.
Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.
Installation
Cast-aluminum pendant splice box threaded for 3/4" conduit (standard). Other mounting options available.
Light Source | HID - High Pressure Sodium, HID - Metal Halide, Not Applicable |
Product Type | High Bay |
Environmental Listing | Damp Location |
Regulatory Listing | CSA, NOM, UL |
Fixture Wattage | 150, 200, 250, 320, 350, 400 |
Voltage Rating | 120, 208, 240, 277, 480, Not Applicable |
Color | White |
Mounting Type | Not Applicable |
Series | TPG |
Suggested Replacement Products
Spec Sheets
Photometry & Revit (BIM)
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Utility Rebate Search
Replacement Parts
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Replacement Part Spec Sheet | HC3P L5-15P.pdf | HC3P L5-15P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L5-20P.pdf | HC3P L5-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L6-15P.pdf | HC3P L6-15P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L6-20P.pdf | HC3P L6-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L7-15P.pdf | HC3P L7-15P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L7-20P.pdf | HC3P L7-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HC3P L8-20P (1).pdf | HC3P L8-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | HID Replacement Parts.pdf | HID Replacement Parts | 7/7/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L5-15P (1).pdf | LC3P L5-15P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L5-20P (1).pdf | LC3P L5-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L6-15P (1).pdf | LC3P L6-15P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L6-20P (1).pdf | LC3P L6-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L7-15P (1).pdf | LC3P L7-15P Specification Sheet | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LC3P LXXX L8-20P (1).pdf | LC3P L8-20P Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | LCPP.pdf | LCPP Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | PPH.pdf | PPH Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | PPHHKR - TPHKR.pdf | PPHHKR - TPHKR Specification Drawing | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | RK1 SKTMED1.pdf | HID Medium Based Socket repair kit - SKTMED1 | 7/1/2015 | View |
|
|
Replacement Part Spec Sheet | SCK SPECIFICATION SHEET.pdf | SCK__ Specification Drawing | 7/1/2015 | View |
|
|
