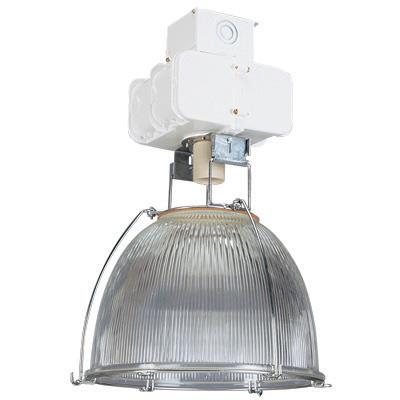

TPG

Premium Open Glass Optical Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

For high mounting heights that require high efficiencies, horizontal and vertical illumination, and premium contrast control. Optimum performance for high ambient temperatures and dirty environments. Ideal for heavy manufacturing areas, warehouses and retail aisles.


Construction

Housing: Rugged, heavy-duty, die-cast aluminum with white polyester powder finish. Electrical components horizontally opposed and heat-sinked to ballast housing for cooler operation.

Optics

High-efficiency, high-performance, heat-resistant borosilicate glass reflector mounted within heavy-gauge rigid wire form rings and rods fitted to top and bottom of reflector. Yields high vertical footcandles with low brightness and excellent contrast control. Self-cleaning, ventilated design carries optical contaminants out through top of reflector.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Cast-aluminum pendant splice box threaded for 3/4" conduit (standard). Other mounting options available.

Read More
Read Less
Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
Product Type Hanger
Environmental Listing Damp Location
Regulatory Listing CSA, NOM, UL
Fixture Wattage 1000, 150, 175, 200, 250, 320, 350, 400
Voltage Rating 120, 208, 240, 277, 347, 480, Not Applicable
Color White
Mounting Type Not Applicable
Series HKF, HKM, TPG
