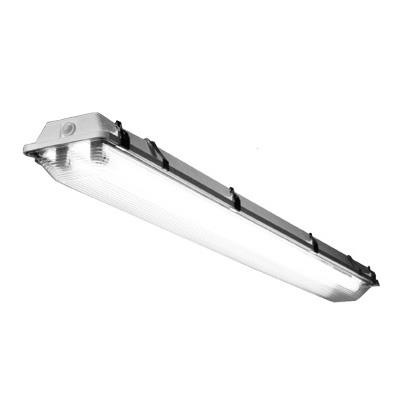

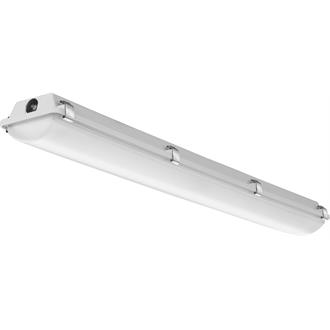

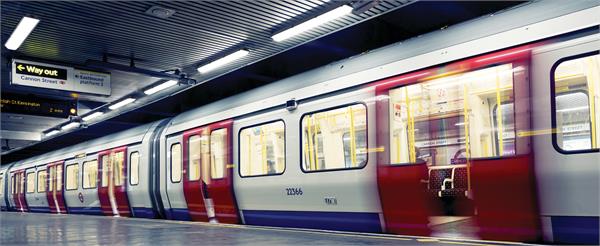

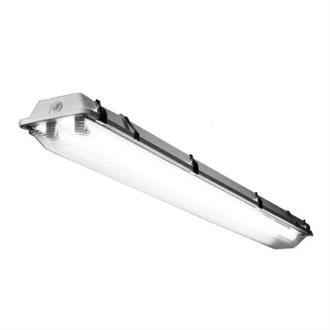

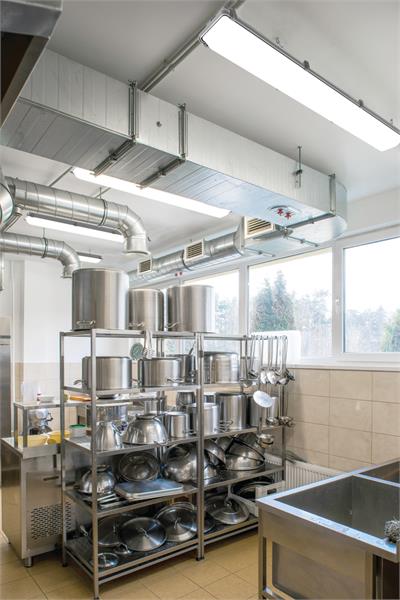

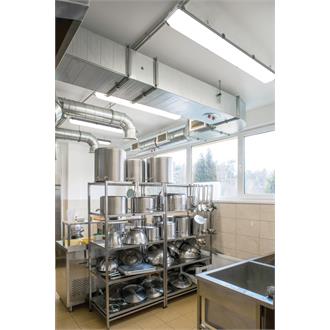

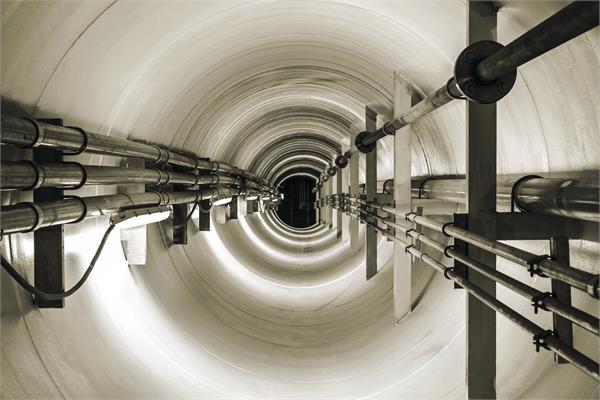

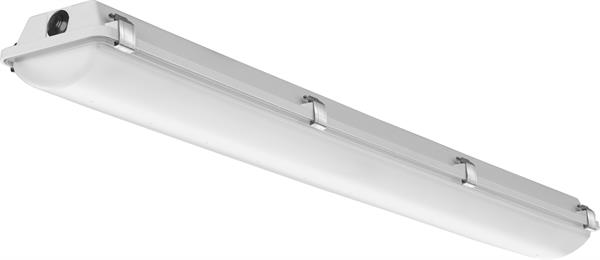

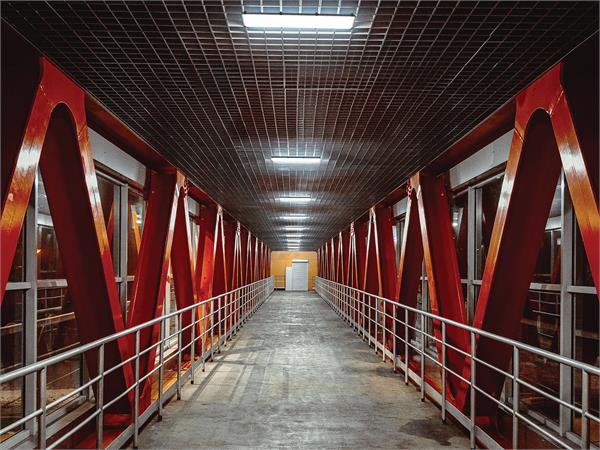

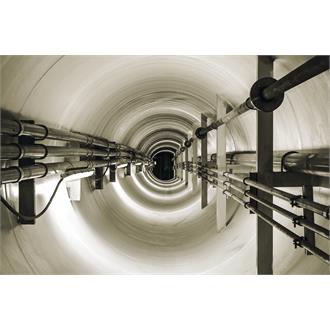

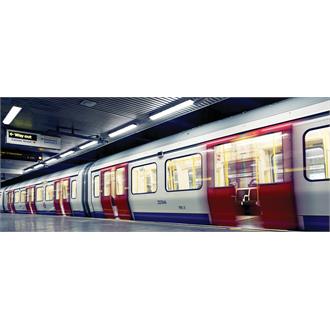

An attractive and energy-efficient surface-mounted or suspended linear `fluorescent luminaire, suitable for wet, damp and/or cold locations. For challenging situations where relatively low fixture mounting heights and wide fixture spacings are common — such as parking garages, industrial facilities, retail malls, multi-purpose centers and airports.Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility table for suitable uses.
Construction

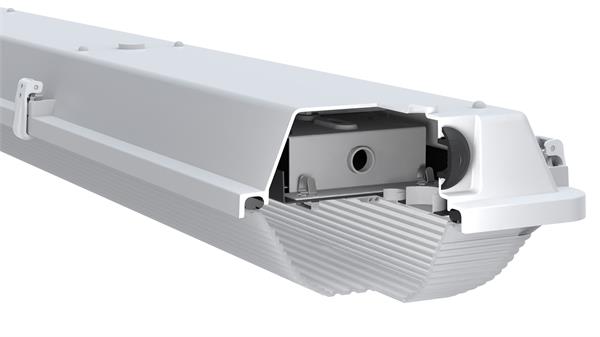

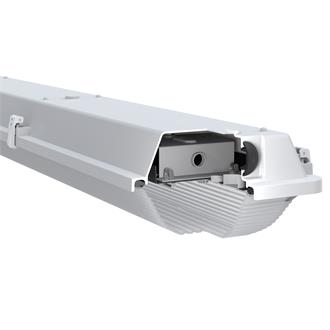

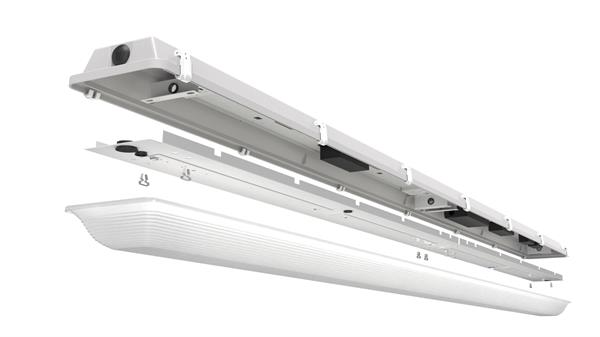

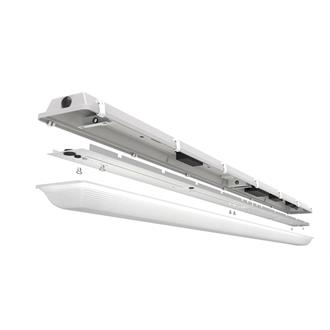

Shallow 4" depth overall and attractively contoured lamp while maintaining high transmission of light. One-piece fiberglass housing with integral perimeter channel utilizing continuous poured-in-place closed cell gasket. Tool-less ballast and wiring access. Stainless steel latches are standard. Power connection is easily accommodated through pre-drilled holes at each end, with wet location fittings provided for maximum flexibility. Easily mounted to ceilings and structure, or suspended with chain, cable or rod, using mounting brackets (included).
Optics
Precision-formed, high-performance, 95% total reflectance optics utilizing premium specular aluminum warranted for 25 years. White ballast cover has 93+% total reflectance and is finished with an in-house polyester powder coating system.
Factory-installed lamps are available in various CRI ratings, temperature colors and rated life. Lamps are secured with rotary locking lamp sockets for ease of relamping and to reduce lamps disconnecting due to vibration or incidental contact.
Electrical
All standard ballasts are electronic, energy saving, thermally protected, Class-P, HPF, non-PCB, Sound Rated A, UL/CSA certified where applicable and comply with 4 Federal Ballast Law (Public Law 100-357, 1988). Default ballast configuration is for two-lamp ballasts except for one-lamp fixtures.
UL listed wire, rated for required temperatures, used throughout.
Installation
May be surface mounted or suspended by chain or cable. Stainless steel mounting brackets included (two per luminaire), pre-punched for easy field-attachment of bolts, screws and other mounting hardware.
Other
Standard one-year warranty for the fixture. Ballasts carry manufacturer warranties of three to five years, depending on the application.
Size | 2FT, 4FT |
Shape | Rectangular |
Light Source | Fluorescent |
Lumens | Not Applicable |
Product Type | Linear |
Environmental Listing | Wet Location |
Regulatory Listing | UL |
Dimming Protocol | Not Applicable |
Fixture Wattage | 14, 17, 28, 32, 54 |
Voltage Rating | 120, 120-277, 208, 240, 277, 347, 347-480, 480 |
Color | Beige, White |
Mounting Type | Pendant, Surface, Suspended |
Series | FEM4, FEM8, FEM2 |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | Low-profile enclosed and gasketed specular; T5HO or T8; 7"x2', 7" x 4' or 7" x 8' | Low-profile enclosed and gasketed specular; T5HO or T8; 7"x2', 7" x 4' or 7" x 8' | 4/12/2022 | View |
|
|
SPEC SHEET | To be printed with all products containing acrylic material | To be printed with all products containing acrylic material | 7/26/2011 | View |
|
|
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Accessories | FEM STANDARD BRACKET SPEC SHEET.pdf | FEM mounting bracket | 3/18/2021 | View |
|
|
Acrylic Compatibility | Acrylic-Polycarbonate-Compatibility | Acrylic Compatibility Information | 9/24/2018 | View |
|
|
Installation Instructions | FEM-EMS-MDM or FEN-ENS-MDN Instruction Sheet au7172 | FEM Medium Industrial Enclosure - Installation Instructions | 9/24/2014 | View |
|
|
Installation Instructions | FEM-FENdpmb.pdf | FEM-FEN DPMB installation instruction | 11/10/2017 | View |
|
|
Material Safety Data Sheet | (GE) psds-fluorescent-lamps.pdf | GE MSDS Fluorescent lamps (2017) | 4/2/2019 | View |
|
|
Material Safety Data Sheet | Fluorescent-T5-Lamps-LMDS-TL5-09100D.pdf | MSDS Philips Fluorescent T5 lamps (Rev 8.28.18 Version number: 1.1) | 4/2/2019 | View |
|
|
Material Safety Data Sheet | Fluorescent-T8-Lamps-LMDS-TL8-13100A.pdf | MSDS Philips Fluorescent T8 lamps (Rev 8.28.18 Version number: 1.1) | 4/2/2019 | View |
|
|
Material Safety Data Sheet | Nicd-Sds.pdf | MSDS for all Power Sentry NiCad brand battery packs | 5/10/2018 | View |
|
|
Material Safety Data Sheet | SDSForNiCdBatteries.pdf | SDS sheet for Bodine_NiCad batteries factory installed with AcuityBrands fixtures | 3/26/2019 | View |
|
|
Material Safety Data Sheet | SYLVANIA (LEDVAnce) Fluorescent Lamps_asset-3364716 (1).pdf | MSDS Sylvania (LEDVAnce) Fluorescent lamps (October 1, 2016 - Rev A) | 4/2/2019 | View |
|
|
