Suitable for use in contamination-controlled environments ISO5 (Class 100) and ISO6 (Class 1,000) applications, such as electronic assembly, pharmaceutical processing, semiconductor manufacturing, chemical labs, food-processing areas and the medical industry. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Construction

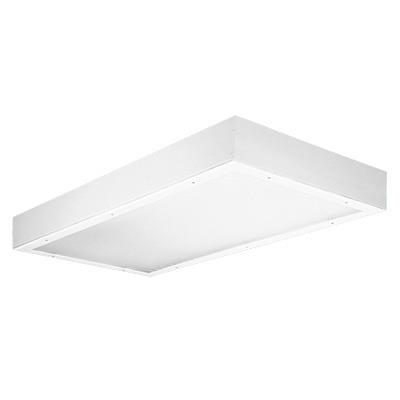

Surface models feature seam-welded housing. Completely sealed, one-piece housing is fabricated from 20-gauge cold-rolled steel.
Full door frame is one-piece, 18-gauge CRS featuring triple closed-cell, cross-linked neoprene gasketing between the door, lens and housing.
Optional four-piece inset door also available.
Full 2'x4' door frame secured to housing by 10 stainless steel captive screws, while inset door features four screws.
Optional stainless steel and aluminum housings and door frames available.
Metal parts finished with electrostatically deposited, thermally set polyester powder paint after fabrication.
Installation
Meets requirements for hose-downs up to 200 psi (see Options).
Size | 4FT |
Shape | Rectangular |
Light Source | Fluorescent |
Lumens | Not Applicable |
CCT / LED Color | Not Applicable |
CRI | Not Applicable |
Product Type | Surface Light |
Environmental Listing | Damp Location |
Regulatory Listing | CSA, NOM |
Fixture Wattage | 32 |
Voltage Rating | 120, 120-277, 277, 347 |
Color | White |
Mounting Type | Surface |
Series | SSH, 2SSH |
Read More Read Less
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | 2'x2' and 1'x2' modular fixtures (ISO 5 and ISO 6), T8 lamps | 2'x2' and 1'x2' modular fixtures (ISO 5 and ISO 6), T8 lamps | 7/31/2019 | View |
|
|
SPEC SHEET | 2'x4' and 1'x4' modular fixtures (ISO 5 and ISO 6), T5 or T8 lamps | 2'x4' and 1'x4' modular fixtures (ISO 5 and ISO 6), T5 or T8 lamps | 7/18/2019 | View |
|
|
SPEC SHEET | To be printed with all products containing acrylic material | To be printed with all products containing acrylic material | 7/26/2011 | View |
|
|
Photometry & Revit (BIM)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Acrylic Compatibility | Acrylic-Polycarbonate-Compatibility | Acrylic Compatibility Information | 9/24/2018 | View |
|
|
