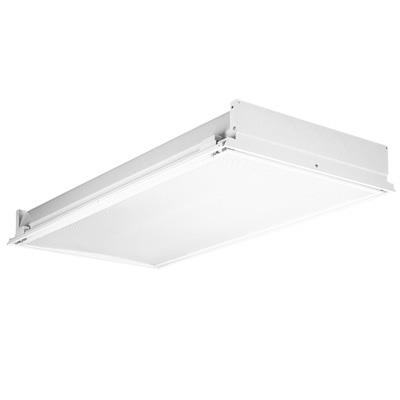

SRT

Recessed

By Lithonia Lighting

    Buy America(n)
  • Overview
  • Specifications

Suitable for use in contamination-controlled environments ISO7 (Class 10,000) and ISO8 (Class 100,000) applications. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Code-gauge steel housing is completely sealed with silicone caulk. Aluminum mitered-corner door frame features sealed cam latches and neoprene gasketing between door and housing.

Metal parts are finished after fabrication with electrostatically deposited, thermally set polyester paint.

Installation

Meets requirements for hosedowns up to 100 psi (see Options).

Suitable for use in 1", 1-1/2" and 2" wide T-bars, or with overlapping flange and swing-out hangers for use in dry or plaster ceilings.

Read More
Read Less
Size 2FT, 4FT
Shape Rectangular
Light Source Fluorescent
Lumens Not Applicable
Product Type Troffer
Compliance Listing BAA
Environmental Listing Damp Location, Wet Location
Regulatory Listing cUL, UL
Fixture Wattage 17, 28, 32, 54
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed
Series 2SRT, SRT

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET 2'x2' and 1'x2' troffers (ISO 7 and ISO 8) T5 or T8 lamps 2'x2' and 1'x2' troffers (ISO 7 and ISO 8) T5 or T8 lamps 1/4/2022 View
    SPEC SHEET 2'x4' and 1'x4' troffers (ISO 7 and ISO 8) T5, T8 or T12 lamps 2'x4' and 1'x4' troffers (ISO 7 and ISO 8) T5, T8 or T12 lamps 1/4/2022 View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
    Installation Instructions SRT Cleanroom Installation instructions.pdf SRT Cleanroom Installation instructions View
