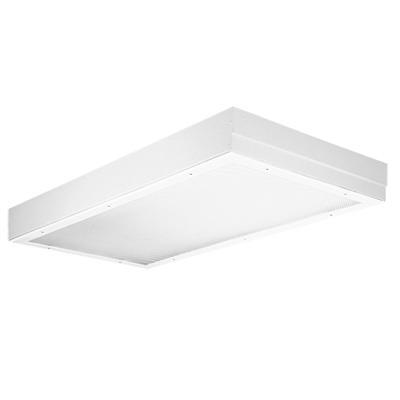

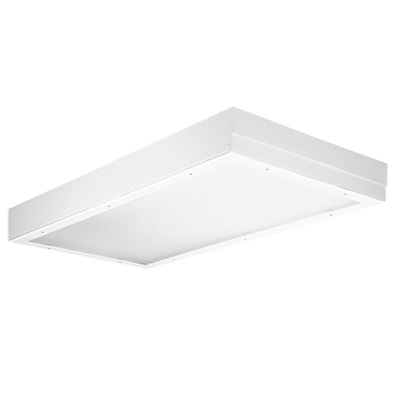

SRH

Recessed, Heavy-Duty Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

Suitable for use in contamination-controlled environments ISO5 (Class 100) and ISO6 (Class 1,000) applications, such as electronic assembly, pharmaceutical processing, semiconductor manufacturing, chemical labs, food-processing areas and the medical industry. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Completely sealed, one-piece housing is fabricated from 20-gauge cold-rolled steel. Seams sealed with silicone caulk.

Full door frame is one-piece, 18-gauge CRS featuring triple closed-cell, cross-linked neoprene gasketing between the door, lens and housing. Optional four-piece inset door also available for grid mounted fixtures.

Full 2'x4' door frame secured to housing by 10 stainless steel captive screws, inset door features four screws.

Optional stainless steel and aluminum housings and door frames available.

Metal parts finished with electrostatically deposited, thermally set polyester powder paint after fabrication.

Installation

Meets requirements for hosedowns up to 200 psi (see options).

Suitable for use in 1", 1-1/2" and 2" wide T-grids, or with overlapping flange and swing-out hangers for use in dry or plaster ceilings. Consult factory for other grid types.

Read More
Read Less
Size 4FT
Shape Rectangular
Light Source Fluorescent
Lumens Not Applicable
CCT / LED Color Not Applicable
CRI Not Applicable
Product Type Troffer
Environmental Listing Damp Location, Wet Location
Regulatory Listing CSA, NOM
Fixture Wattage 28, 32, 54
Voltage Rating 120, 120-277, 277, 347
Color White
Mounting Type Recessed
Series 2SRH, SRH

Read More Read Less

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
    SPEC SHEET 2'x2' and 1'x2' troffers (ISO 5 and ISO 6) T5 or T8 lamps (Discontinued) 2'x2' and 1'x2' troffers (ISO 5 and ISO 6) T5 or T8 lamps 7/18/2019 View
    SPEC SHEET 2'x4' and 1'x4' troffers (ISO 5 and ISO 6) T5 or T8 lamps (Discontinued) 2'x4' and 1'x4' troffers (ISO 5 and ISO 6) T5 or T8 lamps 7/31/2019 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet DOOR AND LENS REPLACEMENTS (Discontinued) DOOR AND LENS REPLACEMENTS View
