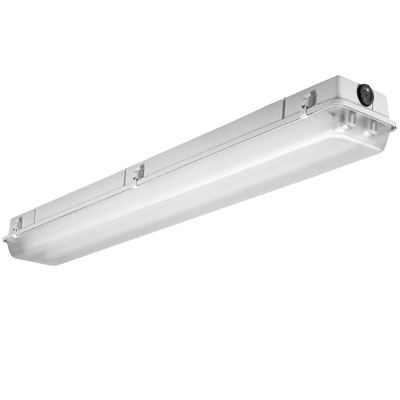

VRI

Enclosed, Fiberglass Housing

By Lithonia Lighting

  • Overview
  • Specifications

General illumination for rough service (vandal-resistant) applications. Ideal for tunnels, canopies, shipping docks, refrigerated areas or any non-hazardous environment that requires a wet location listing. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: Impact-resistant, UV-resistant, fiberglass-reinforced polyester housing with cold-rolled steel enclosed wireway.

Latches: Six tamper-resistant latches per 4' unit; 10 per 8' unit.

Finish: Painted parts finished with high-gloss, baked white enamel. Five-stage iron-phosphate pretreatment ensures superior paint adhesion and rust resistance.

Optics

Lens: High-impact 50% DR acrylic diffuser standard. Secured to fully gasketed housing by captive, tamper-resistant cam-action latches.

Electrical

Ballast: Thermally protected, Class P, HPF electronic ballast standard.

Installation

Suitable for surface, chain or stem mounting. Surface mount bracket included. (Two per 4' unit, four per 8' unit).

For non-tamper-resistant fixture, see DMW fluorescent industrial.

Read More
Read Less
Size 4FT, 8FT
Shape Rectangular
Light Source Fluorescent
Product Type Linear
Environmental Listing Wet Location
Regulatory Listing CSA, NOM
Fixture Wattage 54, 59, 60
Voltage Rating 120, 120-277, 277, 347
Color Beige
Mounting Type Surface, Suspended
Series TVRI, VRI

Read More Read Less
