VGRC

LED, CFL or Incandescent; Cast Housing Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

Architectural luminaires for general illumination in rough service (vandal-resistant) wall or ceiling-mount applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Bezel: One-piece, die-cast aluminum, low copper alloy (<1% copper), .125" thick. Secured to housing with stainless steel Torx® T10 set screws (two included).

Finish: Standard finish is textured polyester powder coat.

Housing: One-piece, die-cast aluminum, low copper alloy (<1% copper), post-painted in textured polyester powder coat. For use directly over outlet box or conduit entry (1/2" and 3/4" threaded opening).

Gasket: Polycarbonate: Perimeter lens gasket is one-piece silicone "O" ring. Glass: Perimeter lens gasket is closed-cell silicone. Pad mounting gasket (closed-cell neoprene) seals housing to mounting surface.

Optics

Lens: Translucent white, injection-molded, UV-stabilized polycarbonate, .125" thick. Smooth exterior for easy cleaning. Interior pattern diffuses light for uniform surface illumination. Optional borosilicate glass lens available (.250" thick). Optional starburst pattern polycarbonate and borosilicate glass lens available (.250" thick).

Reflectors: CFL: High-gloss white powder coat finish for maximum light output. HID: Semi-specular aluminum. Lamps positioned for uniform brightness and illumination.

Electrical

Ballast – CFL: Class P, electronic, HPF multi-volt. <10% THD with starting temperature of 0°F. HID: High reactance, HPF, starting temperature -20°F (MH) or -40°F (HPS).

Socket – CFL: High-temperature thermoplastic with lamp retention clip. HID: Medium-base 4KV rated porcelain.

Lamps - LED: 3500K standard (4100K also available). CFL: 35K 4-pin lamp(s) standard. HID: Reduced UV lamp is standard. Lamps included unless L/LP is specificied. Incandescent: Lamps not included.

Read More
Read Less
Shape Round
Light Source LED - Static, Not Applicable
Lumens 1200 LM
Product Type Wallpack
Environmental Listing Wet Location
Regulatory Listing CSA, UL
Fixture Wattage 40, 50
Voltage Rating 120, 120-277, 277
Color Beige, Black, Bronze, Silver, White
Mounting Type Surface

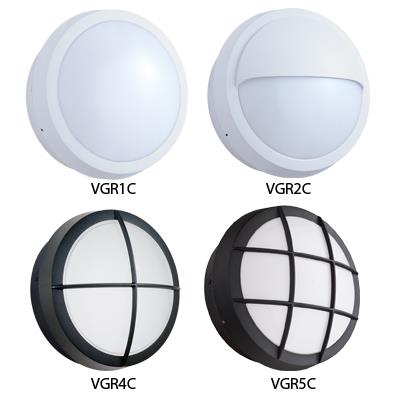

Series VGR1C, VGR2C, VGR4C, VGR5C

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
    SPEC SHEET VGR1C_LED Gateway Deep Housing Round Open Face - LED 1/8/2020 View
    SPEC SHEET VGR1CF_O Gateway Deep Housing Round Open Face - Compact Fluorescent View
    SPEC SHEET VGR1CI Gateway Deep Housing Round Open Face-Incandescent View
    SPEC SHEET VGR2C_LED Gateway Deep Housing Round Eyelid - LED View
    SPEC SHEET VGR2CF_O Gateway Deep Housing Round Eyelid - Compact Fluorescent View
    SPEC SHEET VGR2CI Gateway Deep Housing Round Eyelid - Incandescent View
    SPEC SHEET VGR4C_LED Gateway Deep Housing Round Grille - LED View
    SPEC SHEET VGR4CF_O Gateway Deep Housing Round Grille - Compact Fluorescent View
    SPEC SHEET VGR4CI Gateway Deep Housing Round Grille - Incandescent View
    SPEC SHEET VGR5C_LED Gateway Deep Housing Round Grille - LED View
    SPEC SHEET VGR5CF_O Gateway Deep Housing Round Grille - Compact Fluorescent View
    SPEC SHEET VGR5CI Gateway Deep Housing Round Double Grille - Incandescent View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
    Installation Instructions VGRC Install Instrucations aj520062 VGRC LED, CFL or Incandescent; Cast Housing – Installation Instructions View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Gateway_LED_Flyer Gateway LED Flyer View
    Nomenclature Crossover Gateway LED Specification Crossover Gateway LED Specification Crossover View
