TWA

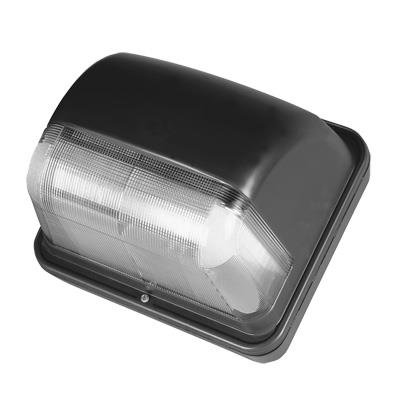

Contour® Series Mini Wall Pack, Polycarbonate

By Lithonia Lighting

  • Overview
  • Specifications

For entrances, stairwells, corridors and other pedestrian areas. Not recommended for applications with frequent exposure to harsh chemicals or commercial cleaning fluids (e.g. car washes). Installations in such environments may lead to premature failure of the luminaire and void the warranty.


Construction

Housing: Rear housing is rugged, die-cast aluminum. Front cover is one-piece, UV-resistant, injection-molded polycarbonate, internally painted. Captive external hardware is treated for corrosion resistance and includes slotted hex-head and tamper-proof fasteners. Finish is dark bronze (DDB) corrosion-resistant polyester powder.

Optics

Front housing and refractor are one-piece, injection-molded, UV-stabilized polycarbonate. High-performance optical system consists of specular anodized segmented reflector and computer-designed prism pattern. Standard finish is dark bronze polyester enamel. Front cover sealed with one-piece, high-temperature silicone gasket to inhibit entrance of outside contaminants.

Electrical

Components are mounted to the cast-aluminum housing, promoting maximum heat dissipation. Ballast: All ballasts are 100% factory tested. MH: High reactance, high power factor for 150W and below. 150W and below are standard with pulse-start ignitor technology. HPS: Reactor normal power factor standard for 120V, HPF available (XHP option). Other voltages are high power factor standard. Fluorescent ballasts are electronic HPF (26 DTT and TRT).

Socket: HID is porcelain, horizontally oriented, medium-base socket with copper alloy, nickel-plated screw shell and center contact. (UL Listed 660W, 600V and 4KV pulse rated.) Fluorescent is four-pin positive latching thermoplastic. LPI is standard 35K for CFL.

Installation

Top 1/2" threaded wiring access. Back access through 3/4" opening. For feed-thru wiring, use condulet tee (not included). Mount on any flat, non-combustible vertical surface.

Read More
Read Less
Light Source Compact Fluorescent
Lumens 1500 LM, 1900 LM, 2700 LM, 5500 LM, 6000 LM
CCT / LED Color 2100 K, 3000 K, 3200 K, 3500 K
CRI 21, 70, 82, 88
Product Type Wallpack
Regulatory Listing UL
Fixture Wattage 100, 26, 32, 42, 50, 70
Voltage Rating 120, 120-277, 208, 240, 277, 347, MVOLT
Color Beige, Black, Bronze, Silver, White
Mounting Type Yoke
Series TWA

Read More Read Less

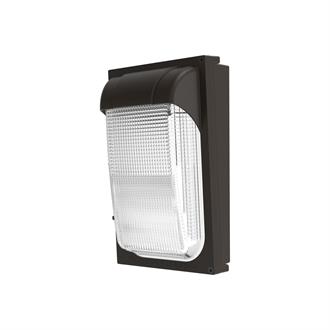

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Mini wall-pack, 22-28DTT, 32-42TRT Mini wall-pack, 22-28DTT, 32-42TRT View
    SPEC SHEET Mini wall-pack, 50-100W MH, 35-100W HPS Mini wall-pack, 50-100W MH, 35-100W HPS View
