VGR

Fluorescent, Steel Backplate Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

Architectural luminaires for general illumination in rough service (vandal-resistant) wall or ceiling-mount applications. Ideal for interior or exterior applications where safety and security are a concern. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Bezel: One-piece, die-cast aluminum, low-copper alloy (<1% copper), .125" thick. Secured to backplate with stainless steel TORX® T10 set screws (two included).

Finish: Standard finish is textured polyester powder coat. Color must be specified.

Backplate: Gasketed, 16-gauge steel, post-painted in black polyester powder coat. Universal keyhole and four-point mounting detail for mounting over junction box.

Gasket: Polycarbonate: Perimeter lens gasket is one-piece silicone "O" ring. Glass: Perimeter lens gasket is closed-cell silicone. Pad mounting gasket (closed-cell neoprene) seals backplate to mounting surface.

Optics

Lens: Translucent white, injection-molded, UV-stabilized polycarbonate, .125" thick. Smooth exterior for easy cleaning. Interior pattern diffuses light for uniform surface illumination. Optional starburst pattern polycarbonate and borosilicate glass lens available (.250 " thick).

Reflectors: High-gloss white powder coat finish for maximum light output. Lamps positioned for uniform brightness and illumination.

Electrical

Ballast: Class P, electronic, HPF multi-volt, <10% THD with starting temperature of 0°F. 13TT is electromagnetic, NPF, 120V only.

Socket: High-temperature thermoplastic with lamp retention clip.

Lamps: 35K four-pin lamp(s) included unless L/LP is specified.

Read More
Read Less
Shape Round
Light Source Compact Fluorescent
Product Type Wallpack
Environmental Listing Wet Location
Regulatory Listing CSA, NOM
Fixture Wattage 13, 18, 26, 32, 42
Voltage Rating 120, 120-277, 277, 347
Color Beige, Black, Bronze, Gray, Green, Red, Silver, White
Mounting Type Surface

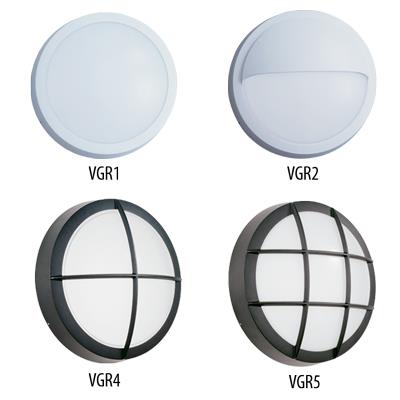

Series VGR1, VGR2, VGR4, VGR5
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Gateway Round Eyelid - Compact Fluorescent Gateway Round Eyelid - Compact Fluorescent View
    SPEC SHEET Gateway Round Grille - Compact Fluorescent Gateway Round Grille - Compact Fluorescent View
    SPEC SHEET Gateway Round Grille - Compact Fluorescent Gateway Round Grille - Compact Fluorescent View
    SPEC SHEET Gateway Round Open Face - Compact Fluorescent Gateway Round Open Face - Compact Fluorescent View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
  • Photometry & Revit (BIM)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories VGR ASY VGR Assembly View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
