RR Linear
- Overview
- Specifications

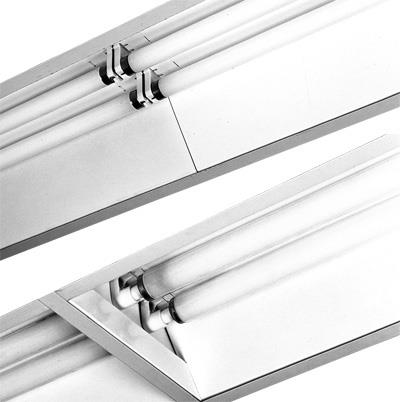

Recessed open (or lensed) row system provides linear illumination for retail and other applications. On CRRS models, lamps are visible from street to attract attention to retail operations.
Construction
Channel rests on standard 12" center-to-center T-bar components. T-bar support required along length of fixture or row and across ends.
High-gloss, baked white polyester, die-embossed reflector.
T-bar clips secure channel to ceiling system.
In row wiring, connection is made through continuous channel. Access to ballast is through channel cover (retained by quarter-turn fasteners).
RR units shipped assembled in 2', 3', 4', 6' and 8' lengths for easy installation. End plates included and assembled on fixture.
CRR units provide a continuous row of illumination without interruption by end plates and cross tees.
CRRS units feature shallow continuous reflector design that drops lamp center even with ceiling plane.
Electrical
Ballast: Thermally protected, resetting, Class P, HPF, non-PCB, UL Listed, CSA Certified ballast is standard. Sound rating depends on lamp/ballast combination.
AWM, TFN or THHN wire used throughout, rated for required temperatures.
Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.
| Size | 2FT, 4FT, 8FT |
| Shape | Rectangular |
| Light Source | Fluorescent |
| Product Type | Linear |
| Environmental Listing | Damp Location |
| Regulatory Listing | CSA, UL |
| Fixture Wattage | 14, 17, 25, 28, 32, 54, 59 |
| Voltage Rating | 120, 120-277, 277, 347 |
| Color | Silver |
| Mounting Type | Recessed, Suspended |
| Series | CRRS, TCRRDONOTUSE, TCRRS |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET CRR Continuous Recessed Row Fixtures 1/31/2018 View SPEC SHEET CRRS Continuous Recessed Row Fixtures-Shallow 1/31/2018 View SPEC SHEET RR Unit Recessed Row Fixtures 1/31/2018 View SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material 7/26/2011 View -
