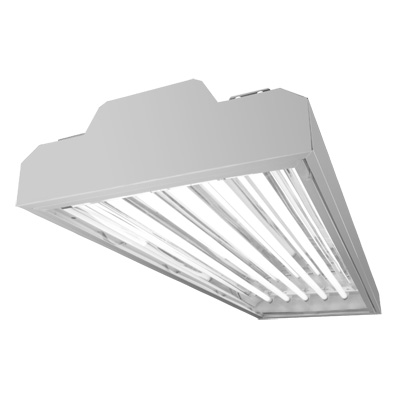

Ideal for use in applications that require additional rigidity and a full body design. Provides significant energy savings, improved color recognition and longer maintenance cycles over standard metal halide systems. May be mounted at heights of 15' to 40' and is available with a variety of photometric options. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.
Construction
Channel, ends and socket brackets are manufactured from 22-gauge cold-rolled steel. Riveted and screwed assembly. Tool-less ballast and wiring access. Optional heavy-gauge steel or all-aluminum construction are also available.
Lamp shielding options are provided with a 22-gauge premium polyester powder coat finish door frame with two painted hinges and two painted opposing rotary cam latches. Lenses are held in place with lens clips. Optional double gasketing around door frame and lens is available.
Finished in premium polyester powder coat finish, utilizing a seven-stage pretreatment process of iron phosphate, a non-chromium sealer and a de-ionized water rinse to provide superior adhesion and corrosion resistance.
Optics
Reflectors are precision-formed, high-performance, 95% total reflectance, segmented optics utilizing premium specular aluminum warranted for 25 years.
Electrical
Ballasts are electronic, energy-saving, thermally protected, Class P, HPF, non-PCB, Sound Rating A, UL/CSA certified where applicable and comply with Federal Ballast Law (Public Law 100-357, 1988). UL listed wire, rated for required temperatures, used throughout.
Lamps are secured with rotary locking lampholders for ease of re-lamping and to minimize disconnection due to vibration or incidental contact. Factory-installed lamps are available in various CRI ratings, temperature colors and rated life.
Installation
May be offset mounted to a hard ceiling or may be suspended with aircraft cable, chain hangers or by monopoint hanger.
Product Type | Hanger |
Mounting Type | Not Applicable |
Series | HBBS, HBBS36 |
Suggested Replacement Products
Spec Sheets
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
SPEC SHEET | Full-body fluorescent high bay; T5HO or T8; 1'-2' | Full-body fluorescent high bay; T5HO or T8; 1'-2' | 2/27/2015 | View |
|
|
SPEC SHEET | To be printed with all products containing acrylic material | To be printed with all products containing acrylic material | 7/26/2011 | View |
|
|
Photometry & Revit (BIM)
Description | Report | Design Tools |
|
|
---|---|---|---|---|
{{photometryItem.Catalog}} | Report |
|
|
Spectral Data Sheets
Guideline Specifications
BIM Models (Revit)
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type | Document Title | Description | Updated | View |
|
|
---|---|---|---|---|---|---|
Acrylic Compatibility | Acrylic-Polycarbonate-Compatibility | Acrylic Compatibility Information | 9/24/2018 | View |
|
|
