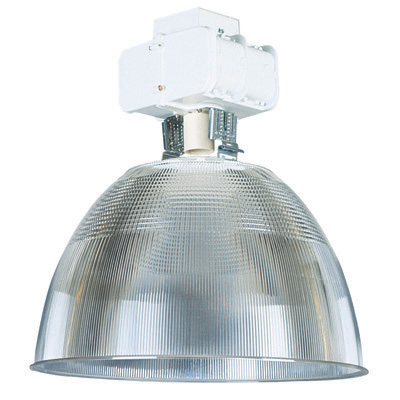

Product Image
TH

TH PA22

Acrylic Optical Discontinued

By Lithonia Lighting

  • Overview
  • Specifications

For high mounting heights that require higher efficiencies, general horizontal/high vertical illumination and premium contrast control. Ideal for light manufacturing areas, warehouses and retail aisles. Certain airborne contaminants can diminish integrity of acrylic. Refer to Acrylic Environmental Compatibility tables for suitable uses.


Construction

Housing: Heavy-duty, die-cast aluminum halves. Ballast and electrical components are heat-sinked and horizontally opposed for cooler operation. Integral splice box mounting flange ensures structural integrity. Electrostatically applied white polyester powder paint.

Optics

UV stabilized, high efficiency, high performance acrylic reflector yields high vertical footcandles while maintaining low brightness. Optical assembly is fully adjustable and accommodates a range of light distributions. Self-cleaning, ventilated design carries contaminants out top of reflector. Coated lamps provide optimum performance.

PA22: 20% uplight.

PA22E: Enclosed, 15% uplight, clear tempered lens. Hinged and latched for easy maintenance.

PA22N: 18% uplight.

Electrical

Ballast: All ballasts are 100% factory tested. HPS: Constant wattage autotransformer. MH: 175-450W fixtures shipped within the U.S. require super CWA pulse start ballasts which are 88% efficient and EISA-legislation compliant (must specify SCWA option). CSA, NOM or INTL options required for probe start shipments outside the U.S. 1000W is constant wattage autotransformer.

Socket: Vertically oriented mogul base protected exclusionary "PINK" socket with copper alloy, nickel-plated screw shell and center contact. For use with O-rated, protected metal halide lamps only.

Installation

Pendant splice box threaded for 3/4" conduit (standard). Pendant splice box – removable cast-aluminum box slides on integral die-cast aluminum housing mounting flange and mounts to 3/4" pendant conduit prior to ballast housing installation. Matching wire access cover accepts RELOC® modular wiring. Complete assembly meets or exceeds UL 50-pound pull test. Other mounting options available.

Optical mounting: Adjustable reflector mounting brackets are progressively die-formed of 18-gauge galvanized steel. For areas where reflectors are subject to impact (gymnasiums, etc.) To protect reflector from breakage; use full wire guard (FWG) option for areas where reflectors are susceptible to impact.

Read More
Read Less
Shape Round
Light Source HID - High Pressure Sodium, HID - Metal Halide, Not Applicable
Lumens Not Applicable
Product Type Hanger
Environmental Listing Damp Location
Regulatory Listing CSA, NOM, UL
Fixture Wattage 250, 320, 350, 400
Voltage Rating 120, 208, 240, 277, 347, 480
Color White
Mounting Type Not Applicable
Series HKF, HKM, TH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET To be printed with all products containing acrylic material To be printed with all products containing acrylic material View
    SPEC SHEET 22" Lensed Acrylic, 175-250W MH (Discontinued) 22" Lensed Acrylic, 175-250W MH 5/7/2019 View
    SPEC SHEET 22" Open or Lensed Acrylic, 250W and 400W HPS, 200 (Discontinued) 22" Open or Lensed Acrylic, 250W and 400W HPS, 200 5/7/2019 View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Acrylic Compatibility Acrylic-Polycarbonate-Compatibility Acrylic Compatibility Information View
    Installation Instructions RJ5210007 - TH-OPT TH Optical assembly instruction sheet View
    Installation Instructions RJ5210087 - TH-TE-TX Series Housing TH_TE_TX housing installation instructions View
    Installation Instructions sck kit installation instructions.pdf SCK Safety Chain Kit Installation Instructions View

  • Utility Rebate Search

  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet HC3P L5-15P.pdf HC3P L5-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L5-20P.pdf HC3P L5-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L6-15P.pdf HC3P L6-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L6-20P.pdf HC3P L6-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L7-15P.pdf HC3P L7-15P Specification Drawing View
    Replacement Part Spec Sheet HC3P L7-20P.pdf HC3P L7-20P Specification Drawing View
    Replacement Part Spec Sheet HC3P L8-20P (1).pdf HC3P L8-20P Specification Drawing View
    Replacement Part Spec Sheet HID Replacement Parts.pdf HID Replacement Parts View
    Replacement Part Spec Sheet LC3P LXXX L5-15P (1).pdf LC3P L5-15P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L5-20P (1).pdf LC3P L5-20P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L6-15P (1).pdf LC3P L6-15P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L6-20P (1).pdf LC3P L6-20P Specification Drawing View
    Replacement Part Spec Sheet LC3P LXXX L7-15P (1).pdf LC3P L7-15P Specification Sheet View
    Replacement Part Spec Sheet LC3P LXXX L8-20P (1).pdf LC3P L8-20P Specification Drawing View
    Replacement Part Spec Sheet LCPP.pdf LCPP Specification Drawing View
    Replacement Part Spec Sheet PPH.pdf PPH Specification Drawing View
    Replacement Part Spec Sheet PPHHKR - TPHKR.pdf PPHHKR - TPHKR Specification Drawing View
    Replacement Part Spec Sheet RK1 SKTMED1.pdf HID Medium Based Socket repair kit - SKTMED1 View
    Replacement Part Spec Sheet SCK SPECIFICATION SHEET.pdf SCK__ Specification Drawing View
