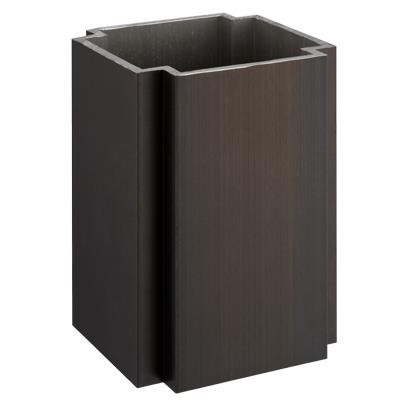

Square straight cruciform pole for mounting heights for up to 30-foot mounting heights.
Shaft: Made from extruded seamless 6000 series alloy aluminum tubing, square cruciform tube is uniform in cross-section down length of shaft with no taper.
Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. Anchor bolt holes are recessed and are covered by tamper-resistant aluminum nut-cover discs.
Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.
Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).
Hand hole: Reinforced rectangular hand hole is located 18" above base. 2" x 4" hand-hole cover plate made from aluminum alloy.
Hardware: Stainless steel.
Top cap: Removable top cap provided with drill-mount poles.
Bolt covers: Nut cover discs provided.
Finish: Must specify finish.
Check out POLESCENTRAL for additional resources and solutions.
|Mounting Type||Anchor Based|
|Pole Shaft Shape||Square|
|Pole Shaft Style||Straight|
