RTAU
- Overview
- Specifications

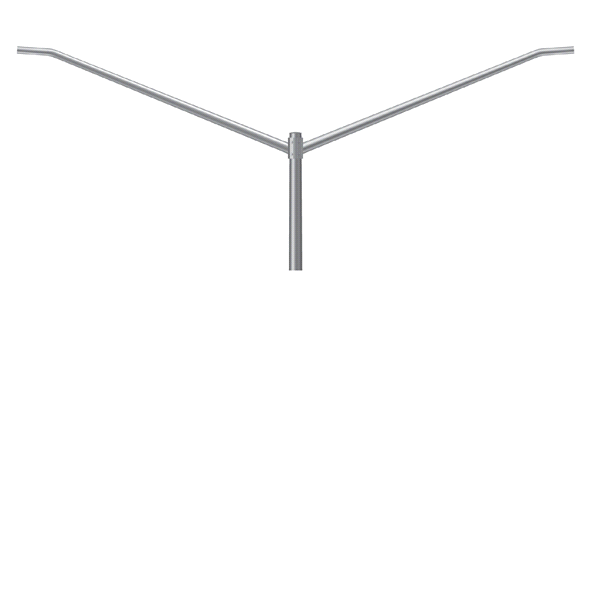

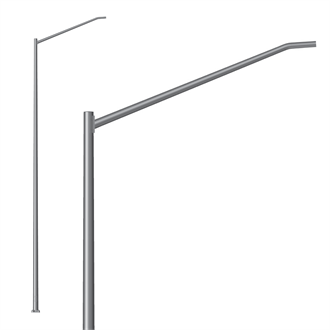

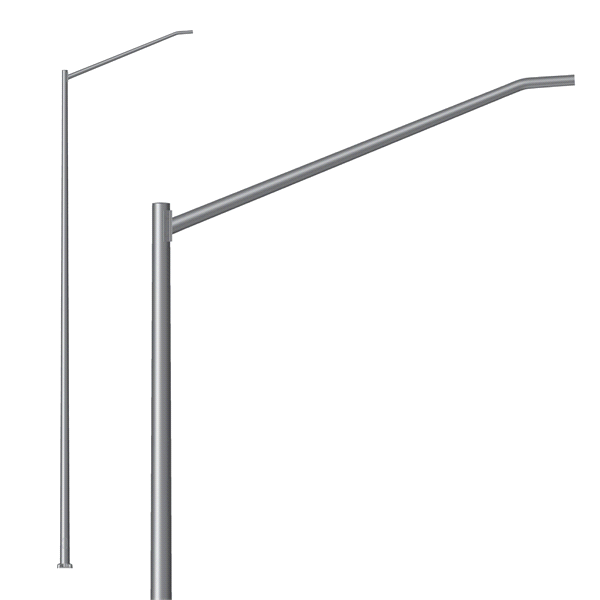

Round tapered aluminum roadway pole with upsweep mast arm(s) for up to 40-foot mounting heights including rise of arm.
Check out POLESCENTRAL for additional resources and
solutions.
Construction
Shaft: Shaft is spun tapered from seamless 6063 alloy aluminum tubing and heat treated to a T6 temper. Circumferential satin-brushed finish. Round in cross-section down length of shaft and cone tapered to the base diameter.
Arm: Body of the mounting arm is tapered aluminum alloy 6063-T6 tube with 2-3/8" OD (2" NPS) pipe size at luminaire end. The pole end of the arm is welded to an aluminum alloy 6063-T6 mounting plate.
Mounting: Arm mounting plate bolts to the shaft using stainless steel bolts, nuts and washers. A grommet is provided for the 1-1/4" diameter wiring hole between the pole shaft and the bracket arm.
Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom.
Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with two hex nuts and two flat washers.
Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).
Hand hole: A nominal 3" x 5" or 4" x 6" reinforced flush covered hand hole is centered 18" above the base.
Hardware: Stainless steel.
Top cap: Removable top cap provided.
Bolt covers: A356 bolt covers included with anchor base unless otherwise specified.
Finish: Must specify finish.
Product Type | Pole |
Compliance Listing | BAA |
Regulatory Listing | UL |
Mounting Type | Anchor Based |
Pole Shaft Style | Tapered |
Series | RTAU |
-
