RSALP
- Overview
- Specifications

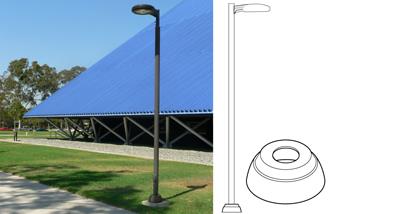

Round straight aluminum general purpose pole for up to 20-foot mounting heights.
Construction
Shaft: One-piece extruded 6063-T6 aluminum alloy with T6 temper. Circumferential satin-brushed finish. Round straight tube is uniform in cross-section down length of shaft with no taper.
Anchor base: Cast from A356 aluminum alloy and heat treated to T6 temper. Base plate and shaft are circumferentially welded top and bottom. The anchor base is provided with slotted holes.
Anchor bolts: Fabricated from carbon steel bar with minimum-yield strength of 55,000 psi. Bolts have an "L" bend on lower end and are galvanized a minimum of 12 inches on the threaded end per ASTM A-153. Each anchor bolt is furnished with hex nut, washer and leveling shims.
Grounding: Provision located inside hand hole rim. Grounding hardware is not included (provided by others).
Hand hole: Reinforced 2"x 5" hand hole is located 18" above base. Cover and attachment hardware furnished.
Hardware: Stainless steel.
Top cap: Removable top cap provided with drill-mount poles.

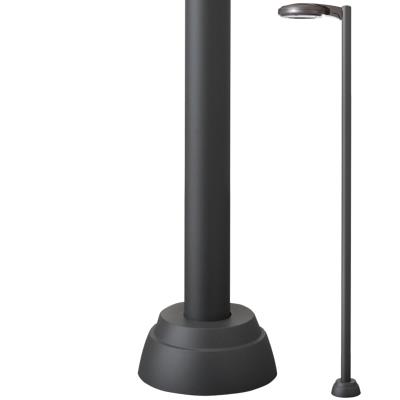

Low-profile base cover. Made of die-cast aluminum, the base slides over the pole fitting over the pole, baseplate for a smooth one-piece design. The base cover is 5" tall with a step contour 3-1/2" above the base.
Finish: Must specify finish.
Other
Available in all Lithonia Lighting Architectural Colors.
Check out POLESCENTRAL for additional resources and solutions.
| Product Type | Pole |
| Compliance Listing | BAA |
| Regulatory Listing | UL |
| Mounting Type | Anchor Based |
| Pole Shaft Style | Straight |
| Series | RSALP |
-
