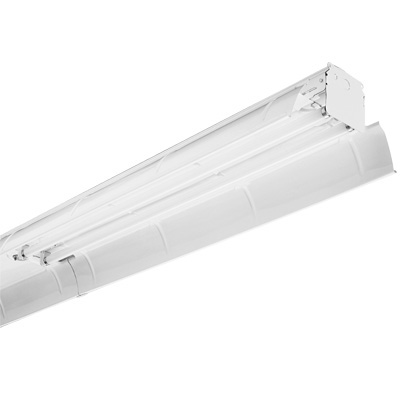

Product Image
1076_large

AFP

Heavy-Duty Industrials, T5HO

By Lithonia Lighting

  • Overview
  • Specifications

For mounting heights up to 25' that require high light levels. Ideal for heavy-duty areas, manufacturing, warehousing, storage or task lighting.


Construction

Solid-top or 10% uplight reflector is die-embossed, constructed of heavy-gauge cold-rolled steel and painted after fabrication. Baked white enamel finish standard; porcelain available. Pressure-lock lampholders enclosed in a snap-in turret housing.

Available in 4' or 8' tandem wired lengths. Full-depth end plates available (order separately; one per fixture or row). Accepts plug-in option for one, two or three primary circuits.

Electrical

Ballast: Thermally protected, resetting, Class P, HPF, non-PCB, UL Listed, CSA Certified ballast standard. Sound rating depends on lamp/ballast combination.

AWM, TFN and THHN wire used throughout, rated for required temperatures.

Ballast disconnect provided standard where required to comply with U.S. and Canadian electrical codes.

Installation

Mounting: For unit or row installations, surface or suspended mounting.

Read More
Read Less
Size 4FT
Shape Rectangular
Light Source Fluorescent, Not Applicable
Lumens Not Applicable
Product Type Linear
Environmental Listing Damp Location
Regulatory Listing CSA, NOM, UL
Fixture Wattage 28, 32, 54
Voltage Rating 120, 120-277, 277, 347
Color Silver, White
Mounting Type Surface, Suspended
Series AFP, AFPC, AFPST, TAFP
