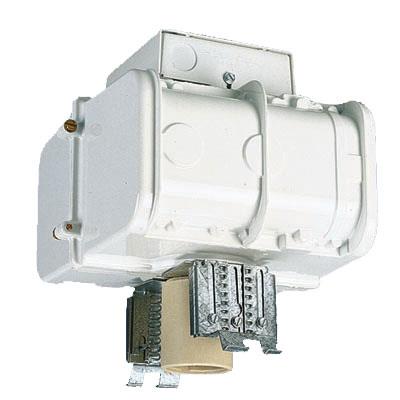

Die-Cast Aluminum Housings, Interchangeable Opticals

By Lithonia Lighting

  • Overview
  • Specifications

Use TH ballast housing with these opticals:

A14: Best for vertical illumination; aisleways. Mounting heights: 18’-35'.
A15: Best for horizontal illumination. Mounting heights: 18’-25’.
A16: Provides high efficiencies; glare control. Mounting heights: 18’-35’.
A17, A22: For optimum lamp shielding; glare control. Mounting heights: 18’-40’+ .

Construction

Modular ballast housing for high bay opticals. Pre-attached adjustable legs accept a wide selection of anodized aluminum and prismatic acrylic high bay reflectors. A variety of distribution patterns at higher mounting heights can be achieved. These systems provide minimum brightness and glare, and superior energy efficiency.

Large ballast housing utilized for optional high ambient temperature rating and for 450-1000W ballasts.

Read More
Read Less
Shape Round
Lumens Not Applicable
Product Type High Bay
Environmental Listing Damp Location
Regulatory Listing UL
Color White
Mounting Type Pendant, Suspended
Series TH
