Z Strip - NY
- Overview
- Specifications

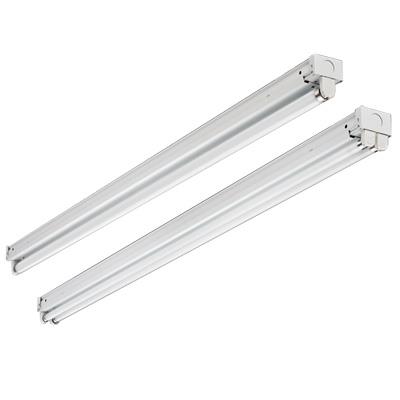

The industry's next generation in linear direct fluorescent products. This new compact, low-profile design offers our customers unique product features which improve the overall installation process and appearance while reducing labor cost, making it the most versatile solution for commercial, retail, manufacturing, warehouse, and cove and display applications.
Designed to accommodate a wide variety of T5, T5HO and T8 lamp lengths. Channel offers the gripper back feature which strengthens the overall construction and allows for the use of the Z spring hanger (see back). Patent-pending fastener-less channel cover offers a secure fit design allowing for quick attachment and easy access without pinching wires.
Construction
Compact designed channel and cover are formed from code-gauge cold-rolled steel. Locking lamp holder tracks bolsters strength of the overall strip construction while creating improved lamp stability. Design includes T5 or T8 socket, features rotating collar and enclosed contacts. Improved easy “snap n’ lock” end plates allow for quick attachment. Patented-pending “three-point” row connector locks channel together for straighter and faster rows mounting; included as standard.
Finish: High-gloss, baked white enamel finish (white standard). Five-stage iron-phosphate pretreatment ensures superior paint adhesion and rust resistance. Standard channel paint finish options: black (MB), smoke gray (SKGY) and galvanized (GALV).
Optics
Reflector options include solid designs in both symmetric and asymmetric configurations. Consult factory for different-apertured versions.
Electrical
Thermally protected, resetting, Class P, HPF, non-PCB, UL listed.
Suitable for damp locations. AWN, TFN or THHN wire used throughout, rated for required temperatures.
Installation
Patented-pending “three-point” row connector locks channels together for straighter and faster rows mounting; included as standard. Ideal for surface-mount or suspended.
Size | 2FT, 3FT, 4FT |
Shape | Rectangular |
Light Source | Fluorescent |
Lumens | Not Applicable |
Product Type | Strip Light |
Environmental Listing | Damp Location |
Regulatory Listing | CSA |
Fixture Wattage | 14, 17, 28, 32, 54 |
Voltage Rating | 120, 120-277, 208, 240, 277, 347 |
Color | Black, White |
Mounting Type | Surface, Suspended |
Series | Z |
Read More Read Less
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET Z-T5-NY Spec Sheet New York City, low-profile T5, one or two lamps, symmetric, asymmetric or no reflector 3/24/2021 View SPEC SHEET Z-T8-NY Spec sheet New York City, compact T8, one or two lamps, symmetric, asymmetric or no reflector 9/2/2021 View -
