RAZ Undercabinet

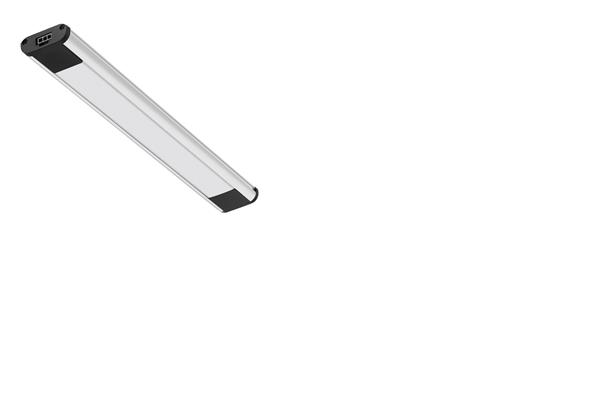

Rayzer LED Indoor .5 in Deep Slim Design Undercabinet

By Lithonia Lighting

  • Overview
  • Specifications
The Rayzer Modular LED lighting System provides low-profile design with high lumen output, smooth illumination, and LED energy efficiency benefits. The Rayzer's slim design is only 1/2" deep and 1-1/4" wide, allowing it to be discreetly installed on open shelves and display cases.
Provides task or accent lighting in commercial, retail, hospitality and residential applications. Ideal for use under and over cabinets, display cases, task lighting, office lighting, coves and utility/work areas.
The linkable Rayzer Lighting System is available in 9 in, 12 in, 18in and 24 in lengths, and produces 324 - 958 lumens. Review installation and accessory options on spec sheet. The Rayzer can be direct wired or powered by cord-and-plug. Create a continuous lighting effect and eliminate shadows by connecting up to 7.5 feet of fixtures.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 320 LM, 430 LM, 620 LM, 950 LM
CCT / LED Color 3000 K
CRI 80
Product Type Undercabinet
Regulatory Listing cUL
Fixture Wattage 28, 6
Voltage Rating 120
Color Clear
Mounting Type Surface
Series RAZ

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Rayzer LED Cabinet Light Rayzer LED – Cabinet Light 6/29/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions Rayzer Power Hub Inst. Sheet.pdf Rayzer Power Hub Inst. Sheet View
    Installation Instructions Rayzer Step Dimmer Inst Sheet RevA.PDF Rayzer Step Dimmer Inst Sheet View
    Installation Instructions U219527T Rayzer inst sheet RevB.PDF Rayzer Installation Sheet View
    Installation Instructions U219537T rev B Rayzer MVOLT inst Sheet.pdf RAZ TRANS MVOLT INST SHEET View
    Installation Instructions ucd jb-U219514T_Splice box RevA.PDF SPLICE BOX INSTALLATION SHEET View
