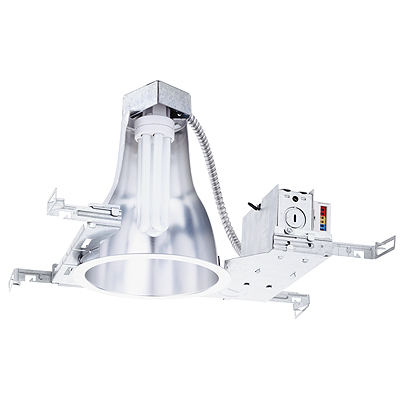

LP6F
- Overview
- Specifications
Ideal for a wide variety of low- to medium-height ceiling applications including commercial, retail and hospitality spaces where open, baffled, wallwash and lensed reflectors are required.
Construction
Rugged, galvanized steel frame-in with high-friction retention clips to secureoptical system. Socket housing attaches to reflector to ensure proper lamp positioning.
Factory-installed captive bar hangers that span up to 24" on center and feature built-in nailers and T-bar clips. Galvanized steel junction box with removable access door, four ROMEX® knockouts, two 3/4" and four 1/2" nominal conduit knockouts with pryout slots. Positioned to allow straight conduit runs.
Remodeling capability; consult factory.
Maximum ceiling thickness 1/2".
Electrical
Electronic ballast with end of life protection standard. Class P thermally protected ballast that protects against improper contact with insulation. Minimum starting temperature is 0°F/-18°C. Rated for #12 AWG conductor through-branch wiring. Minimum 90°C supply wire. Ground wire provided.
Product Type | Housing |
Series | LP6F |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET 6" Full Reflector, Open Multiplier, Vertical, One Lamp 6" Full Reflector, Open Multiplier, Vertical, One Lamp 6/29/2016 View SPEC SHEET 6" Full Reflector, Open Vertical, One lamp 6" Full Reflector, Open Vertical, One lamp 2/24/2011 View SPEC SHEET 6" Full Reflector, Open Wallwash with Kicker, Vertical, One Lamp 6" Full Reflector, Open Wallwash with Kicker, Vertical, One Lamp 2/24/2011 View SPEC SHEET 6” Full Reflector, Vertical, Glass Lens 6” Full Reflector, Vertical, Glass Lens 2/24/2011 View SPEC SHEET LP6F (Old Style) LP6F (Old Style) 10/29/2014 View -
Photometry & Revit (BIM)
Use %(percent) to separate search terms.Description Report Design Tools {{photometryItem.Catalog}} Report CLICK HERE to start your request for a BIM Model or IES file. -
Spectral Data Sheets
-
Guideline Specifications
-
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
Document Type Document Title Description Updated View Installation Instructions TOR Trim Instruction Sheet L7XFR13T Trim Installation Instruction Sheet 9/16/2014 View -
Utility Rebate Search
-
Replacement Parts
Document Type Document Title Description Updated View Replacement Part Spec Sheet 6 Series Vertical Reflectors 6 Series Vertical Reflectors 9/16/2014 View -
