MSD Series

Indoor Micro Sensors

By SensorSwitch

  • Overview
  • Specifications

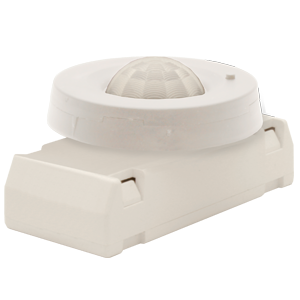

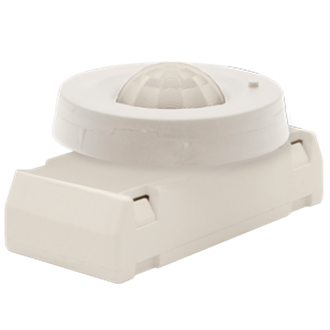

The SensorSwitch MSD sensor is designed to be easily embedded into luminaires. The "micro' sensor directly wires to 0/10 VDC dimmable LED drivers and fluorescent ballasts, providing occupancy based high/low dimming control and optional daylighting control.
eldoLED Compatibility 0-10 VDC Control Output Snap-in Style Embedded Mounting Compatible w/ 0-10 VDC Dimmable Ballasts and LED Drivers Adjustable Time Delays Programming Button Accessible w/o Opening Sensor Adjustable Time Delay, Max/Min Dim Levels, and Ramp Rates No Field Calibration or Sensitivity Adjustments Required Non-Volatile Settings Memory Convenient Test Mode
Read More
Read Less
Control Device Type Daylight Sensor, Fixture Embedded
Mounting Type Fixture Embedded
Control Protocol 0-10V
Product Type Sensor
Color White
Series MSD
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Sports and Recreation, Transportation, Warehouses
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET MSD (PDT) 7.pdf MSD 7 Micro Indoor Embedded 360° Motion Sensor Spec Sheet 12/14/2021 View

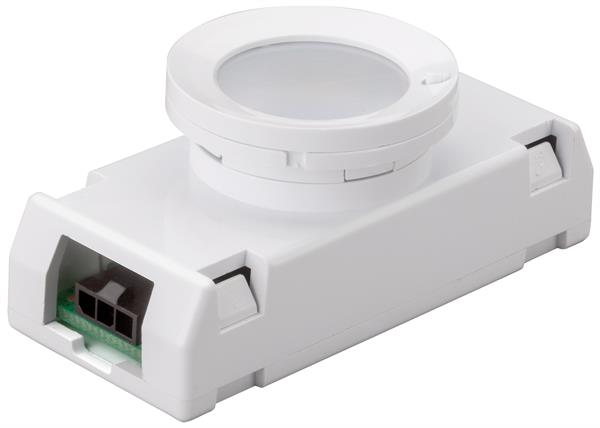

    SPEC SHEET MSD ADC.pdf MSD ADC Micro Indoor Embedded Automatic Dimming/Photocell Sensor Spec Sheet. 5/19/2020 View

    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions MSD (PDT) 7 Instruction Sheet.pdf MSD 7 Micro Indoor Embedded 360 Degree Motion Sensor Instruction Sheet. View
    Installation Instructions MSD ADC Instruction Sheet.pdf MSD ADC Micro Indoor Embedded Automatic Dimming/Photocell Sensor Instruction Sheet. View
    Installation Instructions VLP Quick Start Guide_911-00043-010.pdf VLP Quick Start Programming Guide View
    Technical Bulletins VLP Quick Start Guide.pdf VLP Quick Start Guide View
