PP16 Shunt

Bypass Relay

By SensorSwitch

    CA Title 24/JA8Buy America(n)
  • Overview
  • Specifications

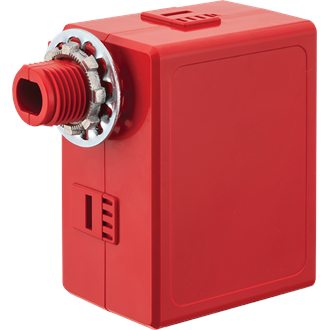

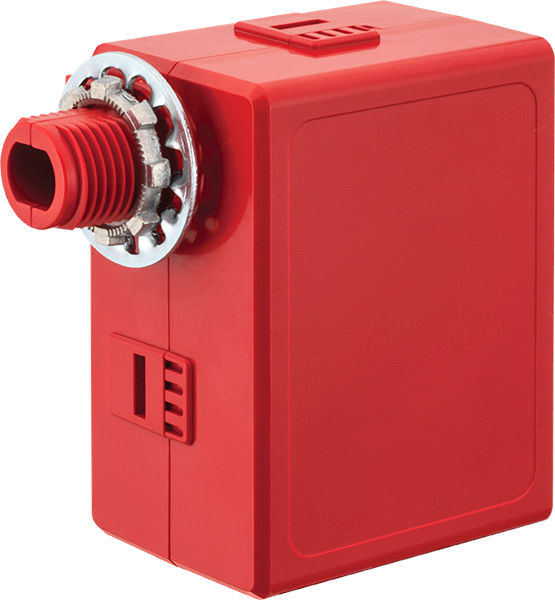

The PP16 SHUNT relay pack operates as an automatic bypass shunt for control devices (such as other relay packs, toggle switches and phase dimming packs) that are controlling emergency powered lighting loads. The relay is open when normal power is present but will latch closed if normal power is lost. An elongated chase nipple facilitates attachment directly to a junction box or fixture through a ½ inch knockout. A push button is also provided which allow users the ability to test the emergency operation.
Read More
Read Less
Control Device Type Lighting Relay
Mounting Type Unit to J Box
Product Type Power Pack
Voltage Rating 120/277
Compliance Listing BAA, CA Title 24, ROHS
Environmental Listing High Humidity
Regulatory Listing UL
Series PP16
Application Type Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Retail, Sports and Recreation, Warehouses
  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET PP16_SHUNT_EFP.pdf Bypass Relay 6/11/2021 View
    SPEC SHEET PP16_SHUNT_EFP_BAA.pdf PP16 SHUNT BAA Spec Sheet 1/10/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    2D Model pp16sh.dwg PP16 Shunt EFP 4/4/2019
    Installation Instructions IS-PP16-SHUNT-EFP.pdf Installation Instruction Sheets View
