Product Image
SBO

SBO xx OEX Family

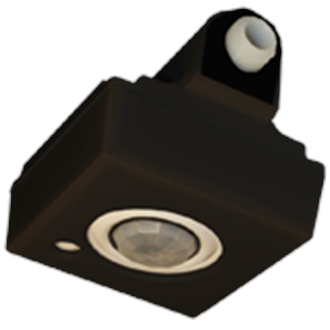

Outdoor Pole Fixture Mount Motion Sensor

By SensorSwitch

  • Overview
  • Specifications
The SBO xx OEX Series outdoor rated sensor incorporates Passive Infrared (PIR) technology into a low voltage sensor. Designed to mount directly through a 1/2” knockout (7/8” hole) in a light fixture or pole, the SBO xx OEX utilizes 100% Digital Passive Infrared (PIR) technology that is tuned for walking size motion while preventing false tripping from the environment. The unit’s optional integrated photocell enables additional energy savings during daytime periods when there is sufficient daylight. The SBO xx OEX P also is ideal for interfacing to other control devices within a luminaire such as the ROAM® dimming control module (DCM) or a twist-lock photocell. For integrated dimming control without the ROAM® system use the SBOR xx ODP Series sensor.
  • 100% Digital PIR Detection, Excellent RF Immunity
  • Push-Button Programmable
  • Non-Volatile Settings Memory
  • Adjustable Time Delays
  • Convenient Test Mode
  • Optional 0-10 VDC Dimming Output
  • 100 hr Lamp Burn-in Timer
  • Green LED Indicator
Read More
Read Less
Control Device Type Daylight Sensor, Dimming Switch
Mounting Type Pole Mount
Control Protocol 0-10V
Product Type Sensor
Color Black, Bronze, White
Finish Semi-Gloss
Voltage Rating 120-277
Environmental Listing IP65
Regulatory Listing CSA
Series SBO
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SBO 6&10 OEX SBO 6&10 OEX Low Voltage, Outdoor Pole/Fixture Mount Occupancy Sensor Spec Sheet. View
    SPEC SHEET SBO BTP.pdf SBO BTP Low Voltage, Outdoor Pole/Fixture Mount Occupancy Sensor Spec Sheet. 3/15/2022 View
