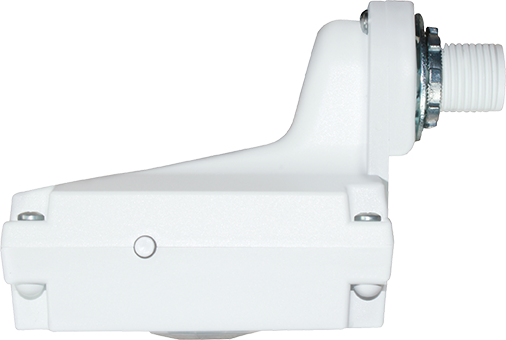

Product Image

SBO Series

Outdoor Pole, Fixture Mount Motion Sensor

By SensorSwitch

  • Overview
  • Specifications
The SBO Series outdoor rated sensor incorporates passive infrared (PIR) technology into a low voltage motion sensor. Designed to mount directly through a 1/2” knockout (7/8” hole) in a light fixture or pole, the SBO utilizes 100% digital PIR technology that is tuned for walking size motion while preventing false tripping from the environment.

The SBO xx OEX P is ideal for interfacing to other control devices within a luminaire such as the ROAM® dimming control module (DCM) or a twist-lock photocell. For integrated dimming control without the ROAM® system, use the SBOR xx ODP Series sensor.
Features:
  • 100% digital PIR detection - excellent RF immunity
  • Up to 45 feet mounting
  • IP66 rated for outdoor applications
  • No minimum load requirements
  • Compatible with LEDs, electronic and magnetic ballasts, CFLs and incandescents
  • Interchangeable hot and load wires - impossible to wire backwards
  • Adjustable time delays, max/min dim levels and ramp rates
  • Programming button accessible without opening sensor or removing gaskets
  • No field calibration or sensitivity adjustments required
  • Non-volatile settings memory
  • Convenient test mode
Read More
Read Less
Control Device Type Daylight Sensor, Dimming Switch
Mounting Type Pole Mount
Control Protocol 0-10V
Product Type Sensor
Color Black, Bronze, White
Finish Semi-Gloss
Voltage Rating 120-277
Environmental Listing High Humidity
Regulatory Listing CSA
Series SBO
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET SBO Family.pdf SBO Family Low Voltage, Outdoor Pole/Fixture Mount Occupancy Sensor Spec Sheet. 6/14/2021 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions IC014-003-Outdoor ODP Motion Sensor Programming Instructions.pdf SBO ODP Outdoor Rated Dimming, Photocell & Motion Sensors Programming Sheet. View
    Installation Instructions SBOR_OEX SBOR OEX Outdoor/Indoor Instruction/Programming Sheet. View
