nRM Family

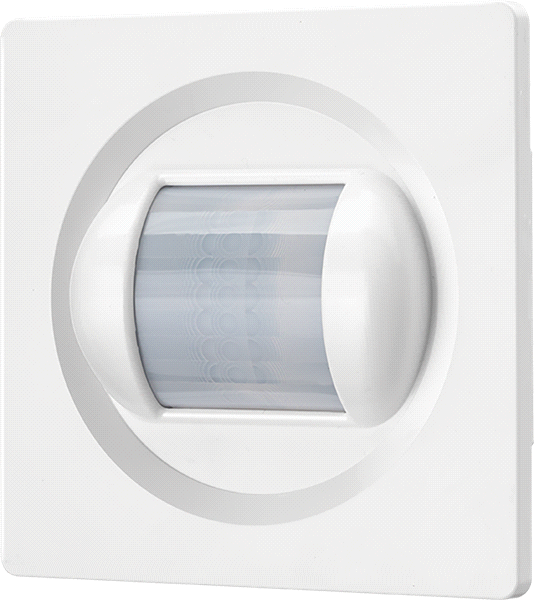

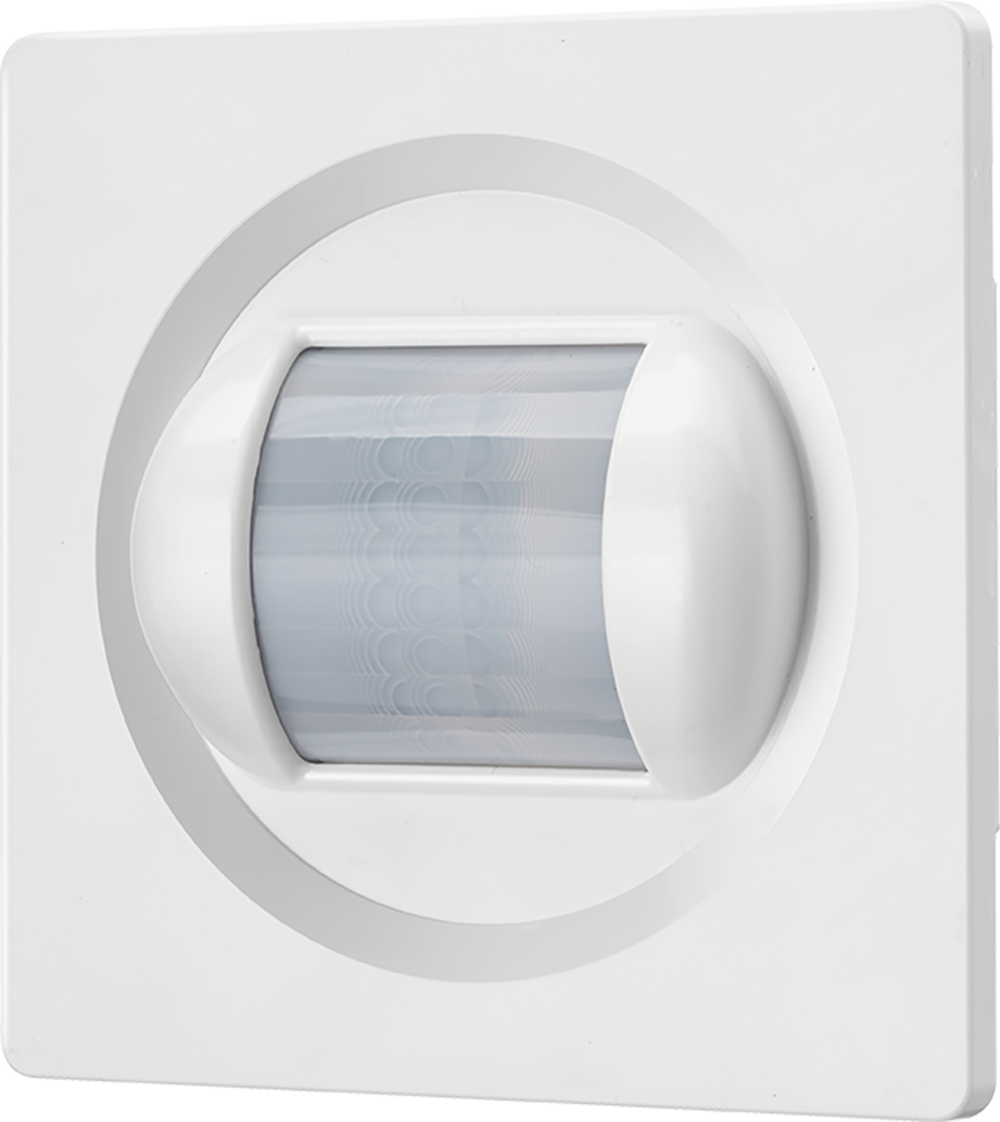

nLight nRM Family of Sensors

By nLight

    DLC StandardCA Title 24/JA8
  • Overview
  • Specifications
The nRM family of nLight recessed mount occupancy sensors provide a range of networked sensor solutions for applications with finished ceilings (e.g. ceiling tiles, sheetrock, plaster). nRM family sensors utilize 100% digital Passive Infrared (PIR) detection and are available with several lens options, providing flexibility for multiple mounting height and coverage pattern requirements. Dual technology occupancy detection can also be added as an option for applications where occupants are stationary for long periods of time. All sensors have integrated on/off photocells as a standard feature, with automatic daylight harvesting/dimming control as an available option. nRM family sensors are powered via the nLight network bus and typically communicate with one or more nLight enabled luminaires (e.g. Lithonia VTLED Series) or nLight relay/dimming packs to enable control of fixtures individually or in groups. These configurations work standalone and do not require a connection to a larger nLight network.
  • 100% digital PIR detection
  • Push-button programmable, adjustable time delays, multiple operating modes
  • Integrated photocell standard (disabled by default) — Photocell views down through sensor lens and when enabled provides two selectable modes of operation
  • On/Off mode: Photocell has full on/off control during periods of occupancy
  • Inhibit mode: Photocell can prevent lights from turning on if adequate daylight is available, but cannot turn lights off
  • LED status indicator
  • Adustable settings (e.g. occupancy time delays, photocell set-points) via push-button or SensorView software application
  • Broadcasts occupancy and photocell information over a local nLight channel
  • Remotely upgradeable firmware
Read More
Read Less
A+ Capable Yes
Control Device Type Daylight Sensor, Occupancy Sensor
Mounting Type Recessed
Networkable Control Networkable Control
Control Protocol 0-10V
Product Type Sensor
Finish Gloss
Voltage Low Voltage
Compliance Listing CA Title 24, DLC Standard, ROHS
Series NRM
Application Type Automotive & Parking, Education, Government, Healthcare, Hospitality, House of Worship, Manufacturing, Offices & Banks, Power & Gas, Residential, Retail, Roadways, Bridges & Tunnels, Sports and Recreation, Transportation, Warehouses

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET nRM Family nLight nRM Family of Sensors Spec Sheet View

  • Photometry & Revit (BIM)

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions nRM ADCX, nRM PC nLight nRM ADCX, nRM PC Sensor Programming Instructions View
