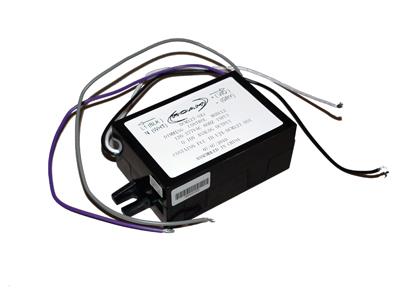

Product Image
DCM127

DCM127

DIMMING CONTROL MODULE (DCM)

By ROAM

  • Overview
  • Specifications
A device integrated into a light fixture that wirelessly communicates with the node and interfaces with a dimmable driver. This DCM is used with the ROAM wireless outdoor lighting management system.
DCM OVERVIEW
  • DCM provides wireless dimming control for any fixture with 0 to 10V dimming ballast/driver
  • Auxiliary sensor inputs (sensors not included)
  • Wireless enabled communication
  • 2.4 GHz- IEEE 802.15.4 compatible
  • FCC Part 15 approved
  • Multiple Driver Support: 0~191;10V output can support up to 4 LED drivers in parallel
  • Supports full remote reprogramming and hardware reset
  • Supports dimming events and calendar synchronized with fixture on/off events and calendar based control
  • US/Canadian UL Recognized component: File E341128 GENERAL
  • Voltage 70~191;305VAC 60Hz
  • Average power consumption is 1.6 watts
  • Maximum power consumption is 2.2 watts
  • Operating Temperature Range: -40 to 85~176;C
  • Remote continuous dimming control to any dim level from 0~191;100%

AUXILIARY SENSOR INPUTS
  • DC Sensor Input (e.g. Motion/Occupancy Sensor)--15VDC @ 1 OmA auxiliary sensor input
  • AC Sensor Input--120-277VAC Auxiliary sensor input
  • Temperature Sensor Inputs:--Supports two independent temperature sensor probes--Sensing temperature range: -40~176;C to 125~176;C

DATA STREAMS:
  • Automatic reporting of max., min. and average hourly temperature data
  • Event Data:--Notification when temperature data exceeds specified thresholds--Notification when motion or occupancy sensors are triggered

PROTECTION
  • 2500V isolation input to output
  • Short Circuit Protection: 0-10V output is short circuit protected, withstanding direct shorts indefinitely
  • Surge protection: 9500A rated 320J (8x20~191;sec)

REFERENCE DOCUMENTATION
  • DCM Installation Guide
  • ROAM Enabled Qualification Test FAQs
  • ROAM Enabled Qualification Test Form
Read More
Read Less
A+ Capable Yes
Application Type Automotive & Parking, Roadways, Bridges & Tunnels
Brand ROAM
Environment Outdoor
Regulatory Listing cUL, UL
Product Type System Controller
Series DCM127
