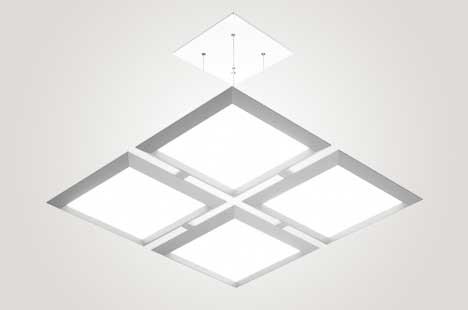

Vellum Quad Pendant

VMMQP | ID or Direct | Suspended | LED

By Peerless

  • Overview
  • Specifications

The Vellum Quad is a distinctive luminaire designed with today’s open architecture in mind. Ideal for modern day work spaces, this luminaire provides performance previously only achieved with traditional linear solutions. The Vellum Quad addresses the need for innovative lighting solutions to meet changing design trends in commercial architecture.

This unique pendant uses four edge lit LED panels working in combination to create high performance indirect/direct or direct illumination. Available with 60/40, 20/80 and 0/100 distributions, this luminaire offers flexibility when designing today's open office and educational environments.


  • Up to 112 lm/w
  • 80 or 90+ CRI
  • Seamless die-cast trims
  • nLight® enabled
  • Square or rounded edge details
  • Optional 20/80 or 0/100 distributions
  • eldoLED 0-10v or DALI driver technology
Read More
Read Less
Shape Square
Light Source LED - Static
Lumens 6900 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80, 90
Product Type Pendant
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Suspended
Voltage Rating 120, 277, 347
Series VMMQP

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET VMMQP VMMQP 11/18/2022 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

    Document Type Document Title Description Updated View
    Spectral Data Sheet SpectralDataSheet_Peerless_VMMQP_80CRI_30K.pdf VMMQP 80CRI 30K 7/12/2022 View
    Spectral Data Sheet SpectralDataSheet_Peerless_VMMQP_80CRI_35K.pdf VMMQO 80CRI 35K 7/12/2022 View
    Spectral Data Sheet SpectralDataSheet_Peerless_VMMQP_80CRI_40K.pdf VMMQP 80CRI 40K 7/12/2022 View

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions VMMQP-SP Installation Instructions.pdf VMMQP, VMMSP Vellum Quad, Single Pendant View
    Installation Instructions VMMQP-SP Installation Instructions.pdf Installation Instructions View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures PER_0369 01_Brochure_Web_031115.pdf Product Brochure View
