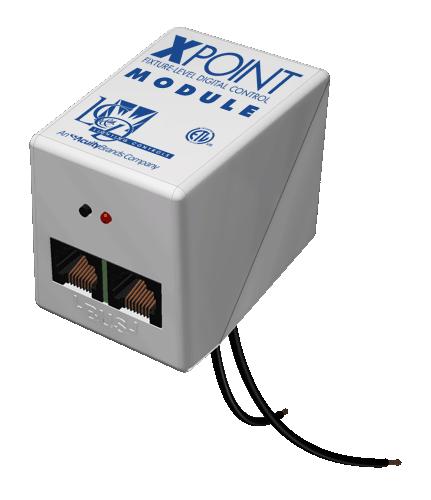

XPointWirelessModule_closeup_xpoint

XPoint Module

*Discontinued* XPoint Module Discontinued

By Lighting Controls & Design

  • Overview
  • Specifications
***This product has been discontinued, please contact your local agent representative.***
The XPoint Modules provide all the features of a networked Relay or (0-10V) Dimmer without the panel. Use the XPoint Module to control an individual fixture, a string of fixtures, a 30A circuit or anything in between. Precise control exactly where you need it. Daisy chain up to 128 XPoint Modules from a single port on an XPoint Router. Modules are placed on a string of Cat. 5 cable with RJ45 connectors. Routers come with driver boards that emulate either a relay panel or a dimming panel on the GR 2400 system. The XPoint Modules may be assigned to any one of up to 96 Relay zones and Dimming Modules to any one of up to 16 dimming zones. Program each zone as required. Reprogramming is as simple as remotely accessing the LC&D GR 2400 system. Relays are software selectable normally closed (N/C), normally open (N/O), or "Latching" (no change on power failure). Note: XPoint Modules may only be plugged into an XPoint router bus port.
Read More
Read Less
Application Type Manufacturing, Retail, Sports and Recreation, Warehouses
Brand Lighting Controls & Design
Environment Indoor, Outdoor
Regulatory Listing cUL, ETL, UL
Product Type Relay
Series XP

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET GR2400_XPOINT_MODULE (Discontinued) GR2400_XPOINT_MODULE View
