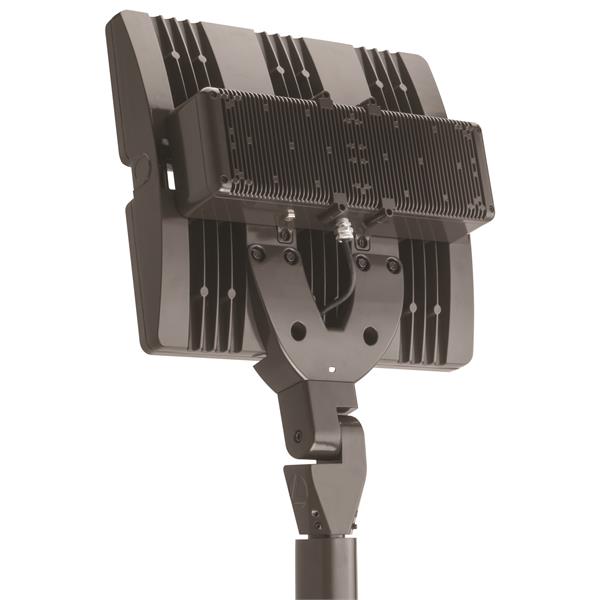

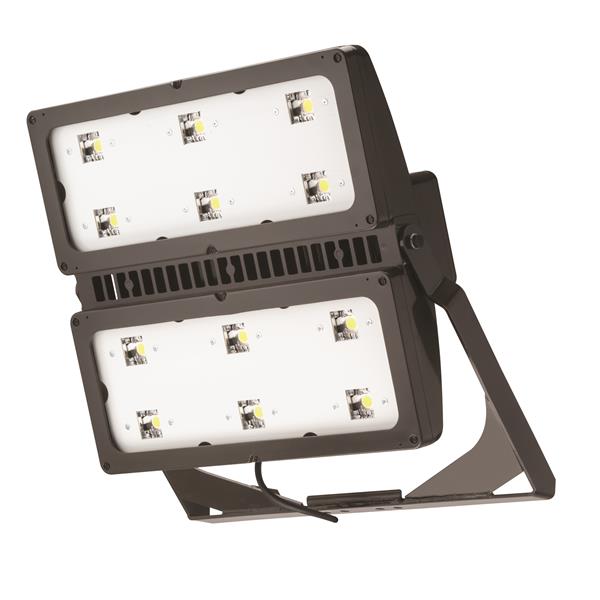

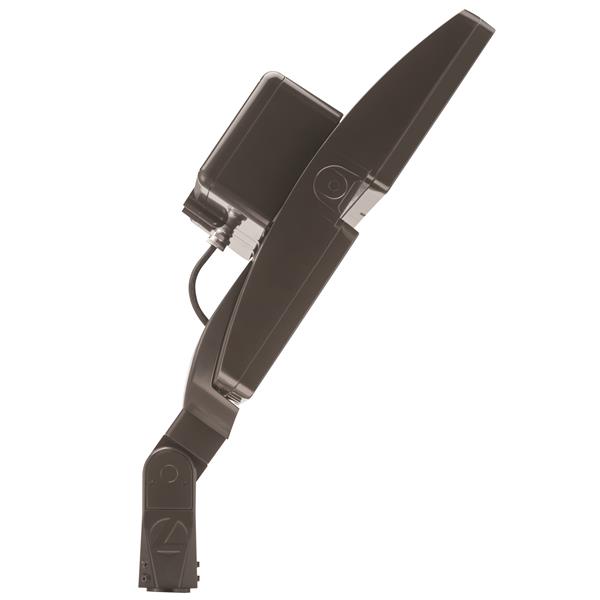

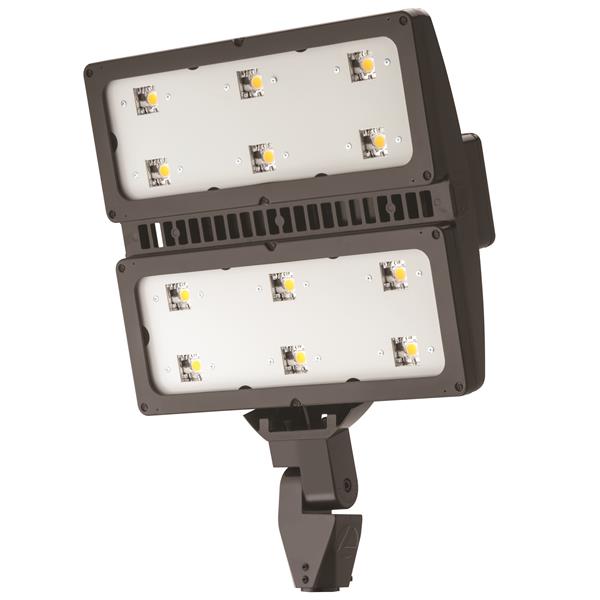

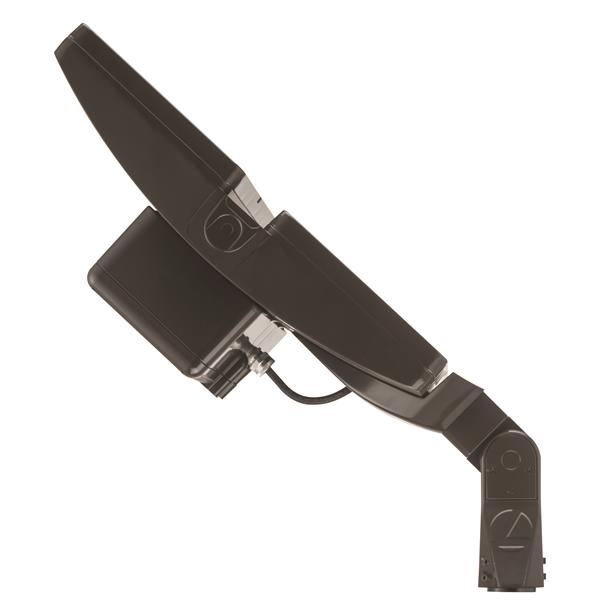

High Lumen Flood Size 2 - HLF2

LED Flood Luminaire Outdoor Size 2 – up to 101,000 lumens

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
The HLF LED flood family offers maximum versatility for high output floodlighting design and renovation applications. The HLF2 delivers 50,000 to 101,000 lumens allowing it to easily replace 1000W in addition to (2) 1000W and (1) 1500W metal halide floodlights, saving up to 81% on energy costs.

HLF makes floodlighting design easy with its six unique distributions, including full range aiming from 0° to 185° and is ideal for the most demanding applications such as up-lighting monuments, buildings and other structures. HLF provides superior illumination using precision optics that offer vast design capabilities all while delivering significant energy savings and long life.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 50,000 LM, 52,000 LM, 53,000 LM, 54,000 LM, 55,000 LM, 56,000 LM, 57,000 LM, 58,000 LM, 59,000 LM, 60,000 LM, 61,000 LM, 62,000 LM, 63,000 LM, 64,000 LM, 65,000 LM, 66,000 LM, 67,000 LM, 68,000 LM, 69,000 LM, 70,000 LM, 71,000 LM, 72,000 LM, 73,000 LM, 74,000 LM, 75,000 LM, 76,000 LM, 77,000 LM, 78,000 LM, 79,000 LM, 80,000 LM, 81,000 LM, 82,000 LM, 83,000 LM, 84,000 LM, 85,000 LM, 86,000 LM, 87,000 LM, 88,000 LM, 89,000 LM, 90,000 LM, 91,000 LM, 92,000 LM, 93,000 LM, 94,000 LM, 95,000 LM, 96,000 LM, 97,000 LM, 98,000 LM, 99,000 LM, 100,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Floodlight
Compliance Listing DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 332, 333, 336, 347, 384, 478, 480, 486, 492, 499, 528, 576, 582, 590, 600, 624
Voltage Rating 120, 208, 240, 277, 347, 480, MVOLT
Color Black, Bronze, Silver, White
Mounting Type Tenon Slipfitter, Yoke
Series HLF2

Read More Read Less
