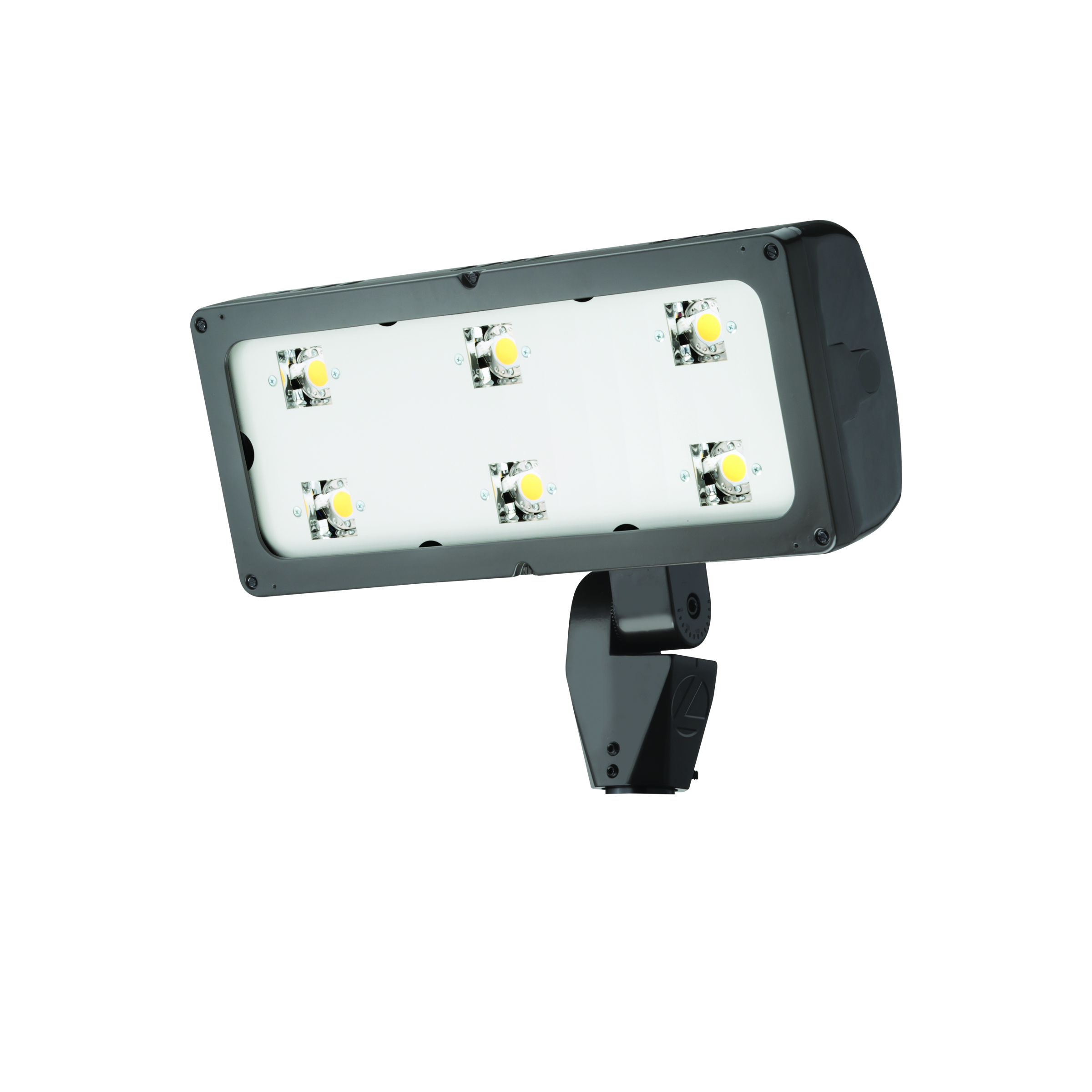

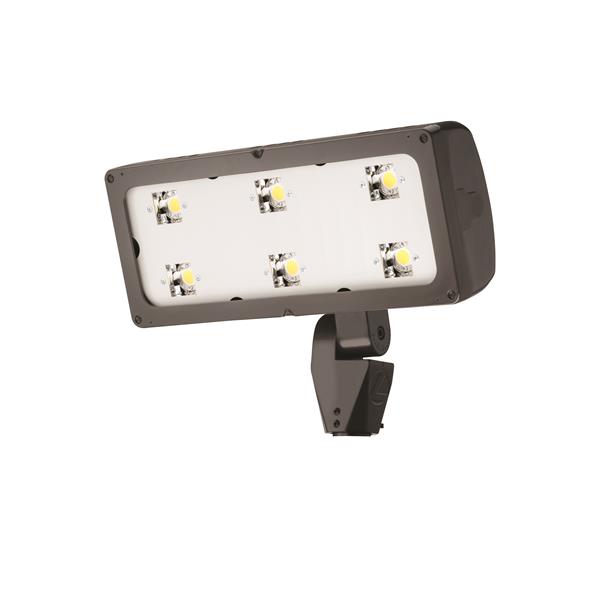

HLF1 LED IS DDBXD_Front.jpg

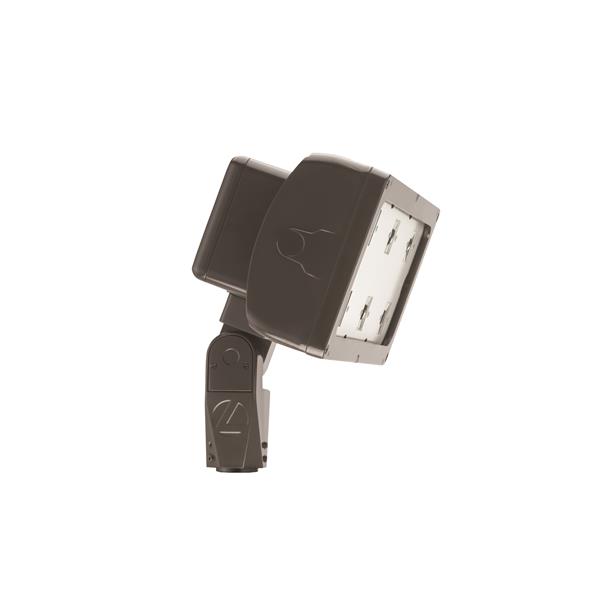

HLF1 LED IS DDBXD_Facing Down.jpg

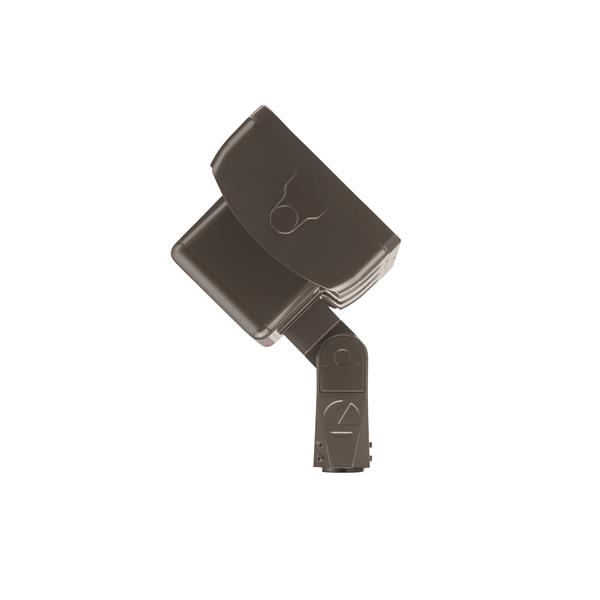

HLF1 LED IS DDBXD_Facing Up.jpg

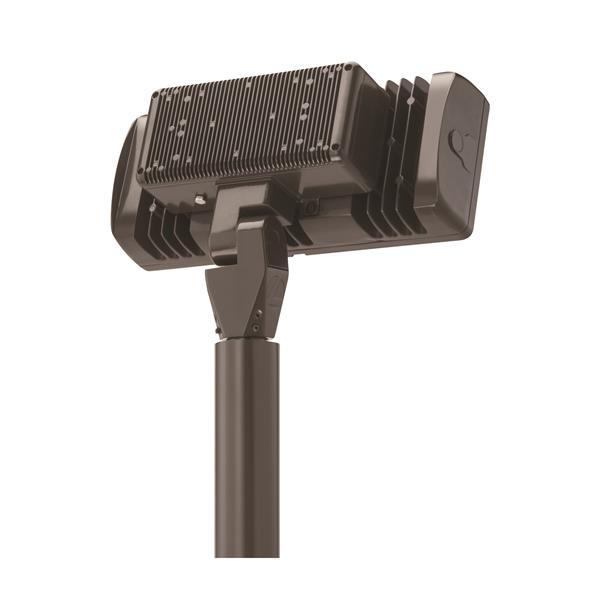

HLF1 LED IS DDBXD_Back.jpg

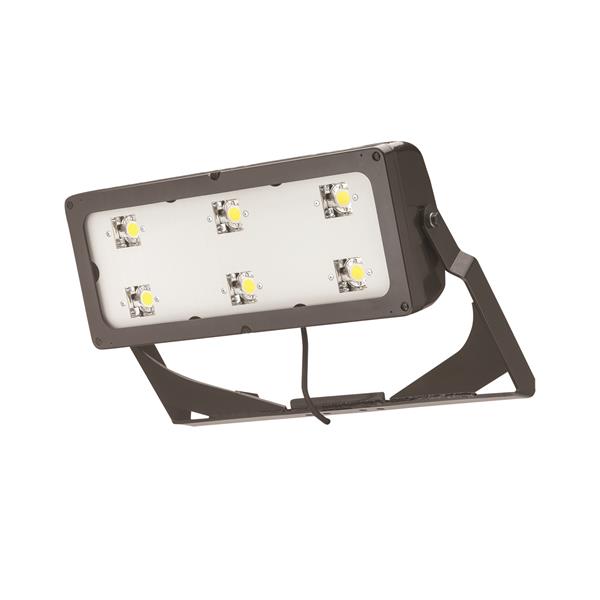

HLF1 LED YKC62 DDBXD_Front.jpg

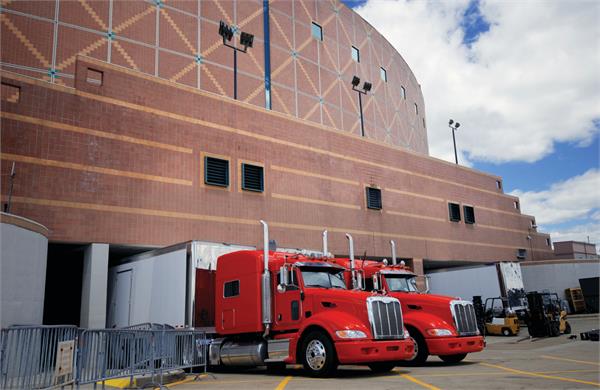

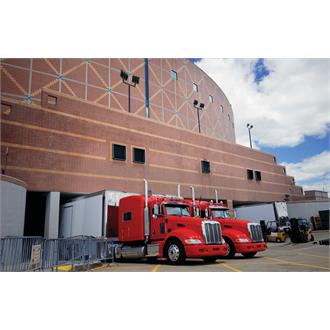

HLF2 LED IS DDBXD_Loading Area.jpeg

High Lumen Flood Size 1 - HLF1

LED Flood Luminaire Outdoor Size 1 – up to 50,000 lumens

By Lithonia Lighting

    DLC Standard / Premium
  • Overview
  • Specifications
The HLF LED flood family offers maximum versatility for high output floodlighting design and renovation applications. The HLF1 delivers 25,000 to 50,000 lumens allowing it to replace 400W and 1000W metal halide floodlights, saving up to 81% on energy costs.

HLF makes floodlighting design easy with its six unique distributions, including full range aiming from 0° to 185° and is ideal for the most demanding applications such as up-lighting monuments, buildings and other structures. HLF provides superior illumination using precision optics that offer vast design capabilities all while delivering significant energy savings and long life.
Read More
Read Less
Shape Rectangular
Light Source LED - Static
Lumens 24,000 LM, 29,000 LM, 38,000 LM, 44,000 LM, 50,000 LM
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 70
Product Type Floodlight
Compliance Listing DLC Standard
Environmental Listing IP66, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 163, 166, 168, 174, 192, 194, 203, 240, 243, 249, 250, 252, 288, 289, 291, 300, 305, 312, 336, 342, 368
Voltage Rating 120, 120-277, 208, 240, 277, 347, 480
Color Black, Bronze, Silver, White
Mounting Type Tenon Slipfitter, Yoke
Series HLF1

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HLF1 Spec Sheet High Lumen Flood Size 1 4/27/2022 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Accessories AFSTM OPTION Architectural stanchion mount 6/4/2020 View
    Installation Instructions INST SHT HLF LED RJ521380 REV A PSL11.pdf INSTRUCTION SHEET HLF 12/18/2019 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet HLF Replacement and Repair Kits.pdf HLF Replacement and Repair Kits 4/5/2022 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures Comm Outdoor Lighting Portfolio Quick Reference Guide.pdf Outdoor Lighting Portfolio - Quick Reference Guide.pdf 4/15/2021 View
    Brochures Outdoor Discretionary Stock Solutions Brochure.pdf LL Outdoor Stock Solutions Guide 9/20/2021 View
    Brochures Outdoor HID Crossover Guide LL Outdoor HID Crossover Guide 5/10/2021 View
    Brochures Outdoor Spec Product Portfolio Brochure_0221.pdf LL Outdoor Specification Solutions Guide 5/27/2021 View
    Product Presentation Lithonia HLF High Lumen Flood-Customer Presentation January 2020.pdf HLF - High Lumen Flood - Customer Presentation - JAN 2020 1/5/2020 View
    Sell Sheet High Lumen Flood Sell Sheet.pdf HLF - High Lumen Flood Sell Sheet 12/23/2019 View
