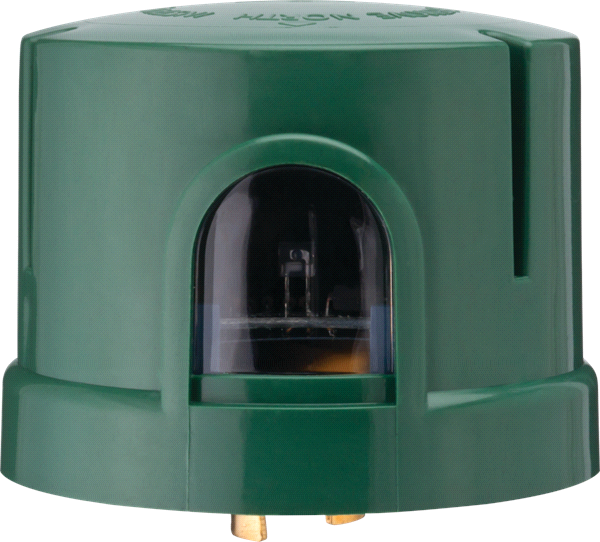

DLL Series
- Overview
- Specifications
Design Details:
- LED inrush protection with TRIAC assisted relay
- Extreme surge protection of 1280J/40kA utility or 2120J/40kA UL listed
- Double thick enclosure and lens with additional UV inhibitor
- High temp base plastic tested to 140~176;C
- Long life capacitors
- Full wave rectified power supply
- Dual zener diodes for long life
- Solid brass contact blades
- Double-sided, thru hole plated .062 FR4 circuit board
- Conformal coated printed circuit board
- Sealed packaging for extended storage
- Low-profile housing available for decorative fixtures
A+ Capable | Yes |
Control Device Type | Photocell |
Mounting Type | Fixture Attached |
Product Type | Photo Control |
Series | DLL480F, DLL127, DLL127F, DLL347, DLL347F, DLL480 |
Application Type | Automotive & Parking, Roadways, Bridges & Tunnels |
-
Suggested Replacement Products
PRODUCT INFORMATION
-
Spec Sheets
Document Type Document Title Description Updated View SPEC SHEET DTL-DLL Spec Sheet.pdf Electronic Locking Type Photocontrol Spec Sheet 4/24/2018 View
Need to Create a Submittal Spec Sheet? Take Me There
-
Photometry & Revit (BIM)
-
Spectral Data Sheets
-
Guideline Specifications
Document Type Document Title Description Updated View Guideline Specification Sheets Div26 DTL DLL Long-Life LED Photocontrol.pdf DTL DLL Elite LED Photocontrol Specification Guideline 2/25/2019 View -
Revit Component Files (Non-Illuminated)
-
Technical Documents (e.g. Instruction Sheets, MSDS, CAD)
-
Utility Rebate Search
-
Replacement Parts
-
Confidential Documents
-
Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )
Document Type Document Title Description Updated View Brochures DTL Product Reference Guide DTL Outdoor Controls Product Reference Guide 3/16/2023 View -
