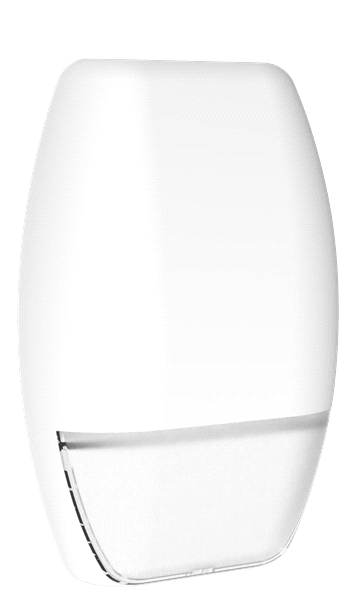

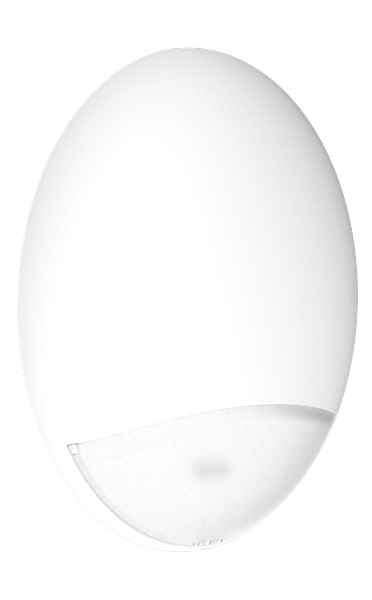

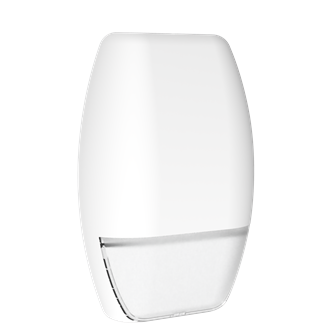

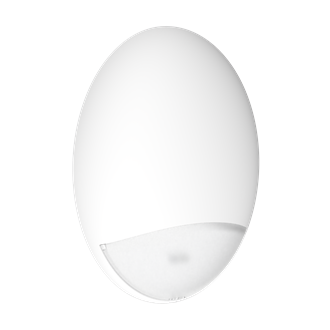

Geo LED & Oval LED

Patient Room LED Nightlight

By Healthcare Lighting

    Buy America(n)
  • Overview
  • Specifications
Night lighting serves an important purpose in a medical facility. For ambulatory patients, sufficient light must be available to safely navigate from the bed to the restroom at night. Caregivers must see a clear path from hallway to bed and then have adequate light to observe the patient’s condition, while minimizing disruption of the patient’s sleep. Therefore, intensity and color of the light, as well as fixture placement, must be carefully considered. Both the Geo and Oval offer rugged die cast aluminum housings that meet the standards of the Americans with Disabilities Act(ADA), extending only 1.3” off the wall. Choose from standard warm white or optional amber LEDs.
  • Sleek design with flush contoured lens complements softer interior designs
  • Integral photocell (Geo only) restricts illumination when ambient light is above a preset level
  • Die cast aluminum faceplate offers supreme durability
  • High efficiency LED light source, available in warm white, amber, or custom color (consult factory)
Read More
Read Less
Light Source LED - Static
CCT / LED Color 3000 K, 4000 K, 5000 K
CRI 80
Product Type Step Light
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing C-UL-US
Fixture Wattage 3
Voltage Rating 120-277
Mounting Type Surface
Series HNL710, HNL720

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET HNL7.pdf Patient Room LED Night Light 3/19/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions HCL_HNL710_720 Installation Instructions REV-C.pdf Geo & Oval HNL710, HNL720 Patient Room LED Night Light 10/7/2020 View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Catalogs Geo & Oval_HCL_PSG11 Geo & Oval Catalog Page View
  • Need Product Assistance? (e.g. How to Buy, Technical Support, Warranty)

    How to Buy

    Acuity Brands lighting and controls products are primarily sold through a network of agents and distributors across North America,
    as well as at more than 100 showroom or international locations and several online retailers.

    •  Find a Showroom or Agent


    Technical Support

    Acuity Brands is dedicated to providing outstanding technical support. Please click on the appropriate link below, or feel free to
    call us at 1.800.705.SERV (7378).

    •  FAQs

    •  Troubleshooting Information (Lighting Fixtures)

    •  Contact Us (Lighting Fixtures)

    •  Contact Us (Controls Services & Support)


    Warranty

    Please click on the appropriate link below to learn more about Acuity Brands terms & conditions and product warranty options.

    •  Review Terms & Conditions or Product Warranties

    •  Register a Recently Purchased Product

    •  File a Warranty Claim
