Entera LED

Recessed Patient Care Solutions

By Healthcare Lighting

    Buy America(n) Option Available
  • Overview
  • Specifications

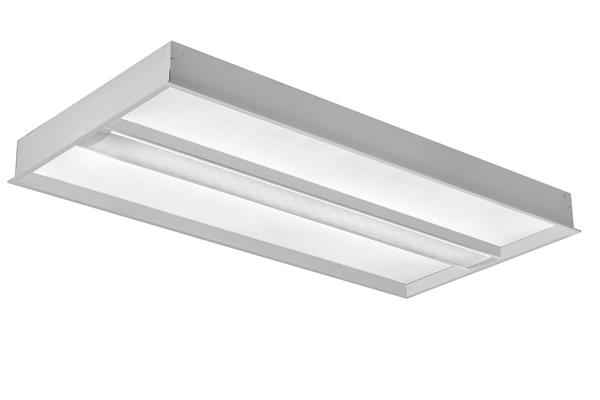

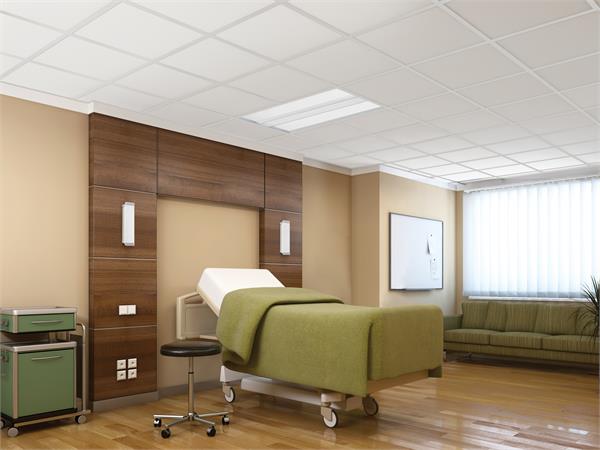

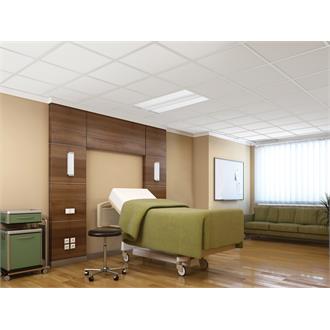

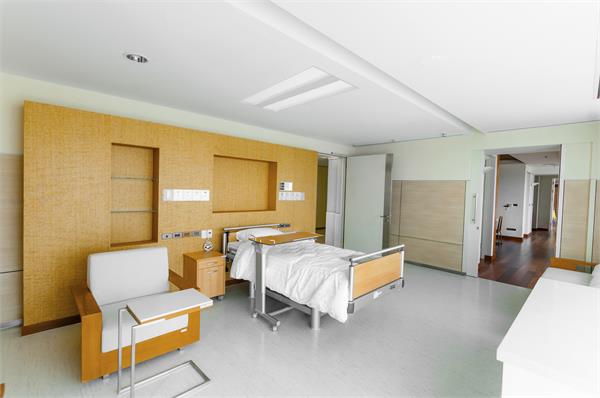

The elegant Entera patient room series merges LED illumination with integral controls to enable optimal patient care with tailorable light levels, low maintenance, and long life.
  • Fresh aesthetic design that creates an upscale, appealing environment while delivering illumination that balances patient care and comfort.
  • A digital lighting solution that replaces 3-compartment fluorescent luminaires in patient and exam modes (up to 35-45% energy savings depending on lamp type and configuration).
  • Advanced optical design that shields patients and medical personnel from direct glare, promoting a quiet ceiling and visual comfort.
  • Provides natural, seamless, and flicker-free dimming to 1% utilizing eldoLED® constant current drivers.
  • Integrated nLight® digital technology allowing the ambient section of the fixture to communicate nLight devices such as occupancy sensors, photocells and wall stations.
  • Four available color temperatures: 2700K, 3000K, 3500K and 4000K.
  • Optional architectural inserts, for center diffuser, add architectural details to the enhance design elements inside the space.
  • Installation Video available HERE.
Read More
Read Less
Size 2x2, 2x4
Light Source LED - Static
Lumens 4700 LM, 7100 LM
CCT / LED Color 3000 K, 3500 K, 4000 K
CRI 80
Product Type Troffer
Compliance Listing BAA
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Fixture Wattage 105, 35, 53, 60, 74, 75
Mounting Type Recessed
Series HPT622, HPT624

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET Entera-Troffer Recessed Patient Care 12/1/2021 View

    Create Submittal Spec Sheet

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.
  • Spectral Data Sheets

  • Guideline Specifications

  • BIM Models (Revit)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions HPT6 LV3 with Pillow Switch Installation Instructions.pdf Entera HPT622 & HPT624, 2X2 & 2X4 Recessed Mount with LV3 Pillow Switch Option 11/3/2021 View
    Installation Instructions I-HPT6-(2015-May-12) Entera HPT622 & HPT624, 2X2 & 2X4 Recessed Mount View
    Installation Instructions i-hpt6-2015-installation-video.pdf Entera Installation Video View
  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Sell Sheet HCL_1341_Recessed_PDF Entera Recessed LED View
