JHBL

LED High Bay

By Lithonia Lighting

    DLC Premium
  • Overview
  • Specifications

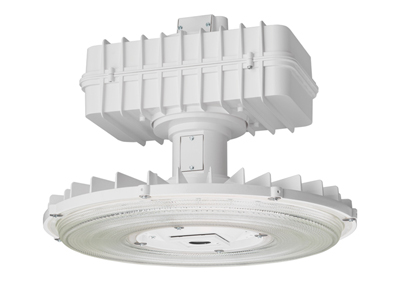

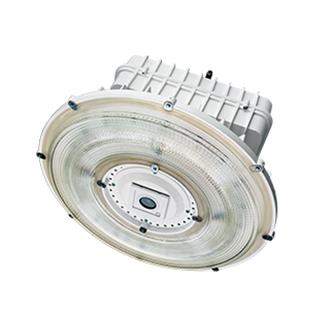

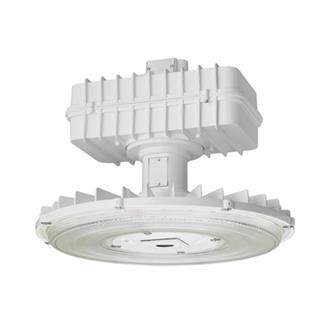

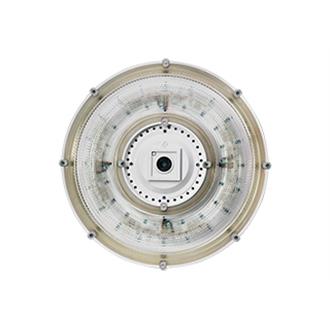

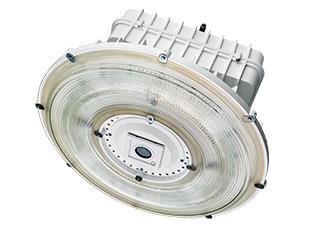

JHBL LED high bay is a high-performance, heavy industrial LED solution designed for unforgiving climates and demanding areas. Designed to maximize thermal performance of the electronics, the completely die-cast luminaire is built to withstand dust, moisture and airborne contaminants to maintain greater light levels. Available with patterned borosilicate glass or impact-resistant acrylic and polycarbonate lens options. The round shape mimics traditional HID from the floor while giving you all the benefits of today's LED technology. Additionally, the JHBL can be customized with innovative nLight® AIR and other Acuity Controls to maximize your savings and increase sustainability.

Now Available with IOTA ETS Emergency Control Device

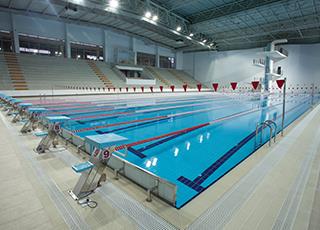

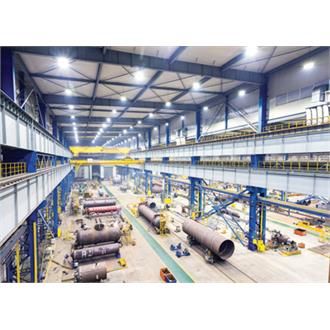

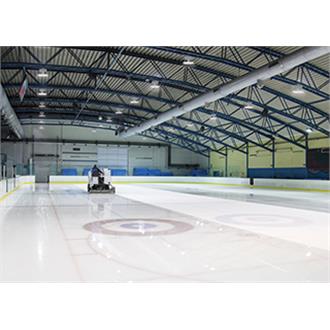

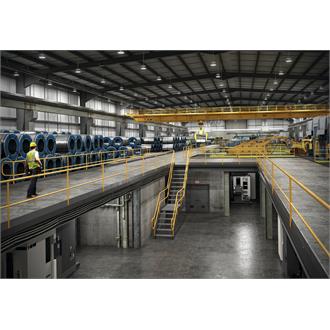

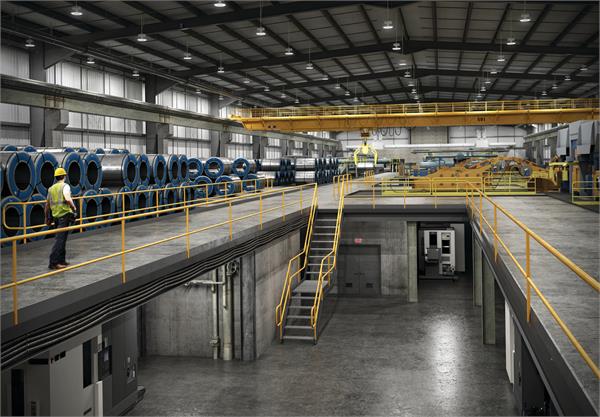

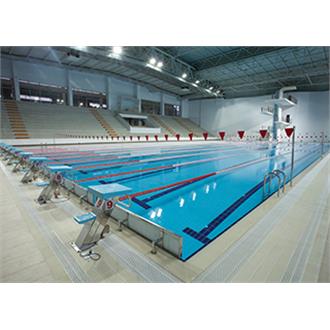

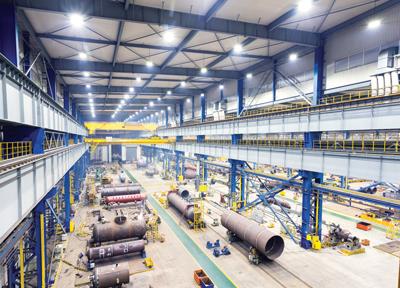

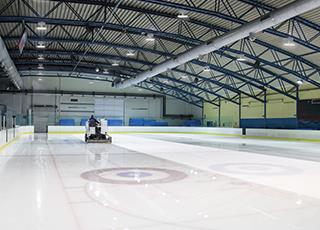

Ideal one-for-one replacement of conventional fluorescent and HID high bay systems. Suitable for the most rugged areas from wet locations to high ambient conditions up to 149°F (65°C). Common applications include manufacturing, machining, foundries, natatoriums, gymnasiums, cold storage and automotive.

Read More
Read Less
Shape Round
Light Source LED - Static
Lumens 12,000 LM, 18,000 LM, 24,000 LM, 30,000 LM, 35,000 LM, 40,000 LM, 45,000 LM, 50,000 LM, 60,000 LM, 70,000 LM, 80,000 LM, 90,000 LM
CCT / LED Color 3500 K, 4000 K, 5000 K
CRI 70, 80, 90
Product Type High Bay
Compliance Listing DLC Premium, DLC Standard
Environmental Listing IP65, Wet Location
Regulatory Listing CSA
Dimming Protocol 0-10V
Voltage Rating 120, 120-277, 208, 230, 240, 277, 347, 347-480, 480
Color Black, Bronze, Gray, Silver, White
Mounting Type Pendant, Suspended
Series JHBL, IBL, IBH

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET JHBL LED IP Rated High Bay, Specification sheet 1/18/2023 View
    Design Select

    Need to Create a Submittal Spec Sheet? Take Me There

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Guideline Specifications

  • Revit Component Files (Non-Illuminated)

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions JHBL installation instructions U219813.pdf JHBL LED IP Rated High Bay – Installation Instructions 6/30/2021 View
    Installation Instructions JHBL safety cable instruction sheet.pdf JHBL safety cable instruction sheet View
    Installation Instructions JHBL tandem mounting bar Tandem Mounting Bar installation instructions View
    Material Safety Data Sheet PS1055CP-MSDS-C98-IFR26650N3000-3S1PMSDS.pdf MSDS sheet for PS1055CP View
    Material Safety Data Sheet PS1555CP-MSDS-C98-IFR26650N3000-3S1PMSDS.pdf MSDS sheet for PS1555CP View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet HKMI.pdf HKMI specification sheet View
    Replacement Part Spec Sheet JHBL Repair Kits Replacement drivers, boards, etc. 2/22/2022 View
    Replacement Part Spec Sheet LPMI.pdf LPMI specification sheet View
    Replacement Part Spec Sheet WGJHBL Specification Sheet.pdf WGJHBL Specification Sheet View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures JHBL_Brochure.pdf Brochure View
    Brochures LL_807550_Industrial Portfolio Refresh_0621_Interactive.pdf Lithonia Lighting Industrial Portfolio 8/30/2021 View
