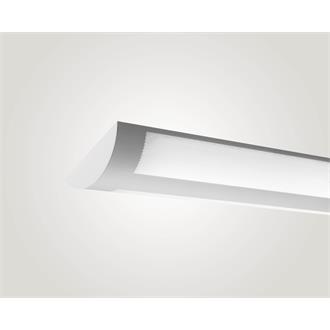

Cerra 7 LED Partial Perforation

7CRM7L | Indirect | Steel | LED

By Peerless

  • Overview
  • Specifications

Pierced with hundreds of tiny holes along the sides that make the housing appear to glow when illuminated, Cerra 7 LED Partial Perforation produces quality illumination that promotes workplace productivity (IES RP-1 for offices) and helps improve classroom learning (IES RP-3/CHPS for schools).

Cerra 7 LED features eldoLED® drivers that dim to dark with no flicker as part of a modular light engine that delivers 50,000 hours (12-15 years) of illumination to L80. Cerra 7 LED can be specified with an integrated sensor to provide daylight dimming and/or occupancy detection. Cerra 7 LED can also be specified with an integrated network module for CAT-5e “plug-and-play” connectivity with nLight® control systems.


  • 4ft, 8ft & 12ft Sections
  • Flat or Sculptured Ends
  • White, Aluminum, Black or Custom Finish
  • Distribution 98/02
  • Low & High Lumen Packages Up to 4858
  • 5-Year Warranty
Read More
Read Less
Shape Curved
Light Source LED - Static
Lumens 700 LM, 1300 LM
CCT / LED Color 2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI 80
Product Type Linear
Compliance Listing Chicago Plenum, Declare
Environmental Listing Damp Location
Regulatory Listing CSA
Dimming Protocol 0-10V, DALI
Mounting Type Suspended
Voltage Rating 120, 277
Series 7CRM7L

Read More Read Less
